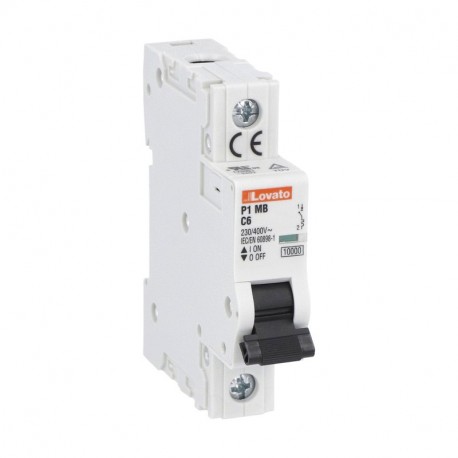

LOVATO ELECTRIC P1MB1PC06 P1MB1PC06 LOVATO MINIATURE CIRCUIT BREAKER, 1P 10KA. 1 MODULE, CHARACTERISTIC C, 6A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1MB1PC06 LOVATO MINIATURE CIRCUIT BREAKER, 1P 10KA. 1 MODULE, CHARACTERISTIC C, 6A

P1MB1PC06

P1MB1PC06

LOVATO ELECTRIC

1 unit

MINIATURE CIRCUIT BREAKER, 1P - 10KA. 1 MODULE, CHARACTERISTIC C, 6A MINIATURE CIRCUIT BREAKER 1P C 6A 10KA Miniature circuit breaker, 1P - 10kA. 1 module, characteristic C, 6A

Automation > Miniature circuit breaker (MCB)
Miniature and residual circuit breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Protecting electrical wiring systems from dangerous current surges, the P1MB1PC06 LOVATO MINIATURE CIRCUIT BREAKER, 1P 10KA. 1 MODULE, CHARACTERISTIC C, 6A acts as an automatic circuit protector. Such modular switching devices are widely used in control cabinets to disconnect power during overload events.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP): IP20
  • Release characteristic: C
  • Voltage type: AC/DC
  • Ambient temperature during operating: -40 °C
  • Connectable conductor cross section solid-core: 1 mm²
  • Frequency: 50 Hz
  • Additional equipment possible: Yes
  • Flush-mounted installation: No
  • Concurrently switching neutral conductor: Yes
  • Explosion-proof: No
  • Rated impulse withstand voltage Uimp: 4 kV
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: 10 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: 10 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: 10 kA
  • Number of poles (total): 1

More info

▲

P1MB1PC06

Miniature circuit breaker, 1P - 10kA. 1 module, characteristic C, 6A

Technical specifications

Type of product:
Miniature circuit breakers
Number of DIN modules:
1
Number of poles:
1P
Tripping curve:
C
Rated current In [A]:
6
Compliance:
IEC / UL1077
Order codeP1MB1PC06
Weight [g]115
Qty. per package12
Multiple qty. of packs per order12
Package dimensions [mm]250X100X080
Volume [cm³]166.667
Bar code [EAN13]8013975202852
HS Code85362010

19.72 £
