View larger
Images are for illustrative purposes only. Please refer to data sheet for details

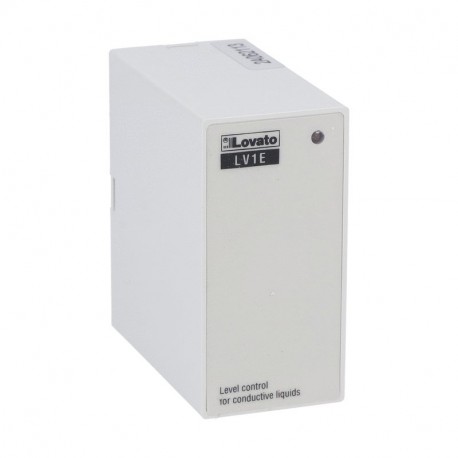

31LV1E110 LV1E110 LOVATO LEVEL MONITORING RELAYS, PLUG-IN VERSION, SINGLE-VOLTAGE. AUTOMATIC RESET, 24VAC
31LV1E110
LV1E110
LOVATO ELECTRIC
1 Pcs.
LEVEL MONITORING RELAYS, PLUG-IN VERSION, SINGLE-VOLTAGE. AUTOMATIC RESET, 24VAC
Level 3 relay probes 110VAC. Auto reset. Ext.
Level monitoring relay, plug-in version, single-voltage. Automatic resetting, 110...120VAC
Automation > (Fill) level monitoring relay
Level control relays - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲31LV1E110
Level monitoring relay, plug-in version, single-voltage. Automatic resetting, 110...120VAC
Technical specifications
- Type of product:
- Level monitoring relays
- Type of liquid:
- Conductive liquids
- Functions:
- Emptying
- Number of connectable electrodes [Nr.]:
- 3
- Sensitivity [kΩ]:
- 7...8 fixed
- Number of relay outputs:
- 1
- Rated supply voltage:
- 110...120VAC
- Type of installation:
- 8-pin plug-in housing (socket S8)
| Order code | 31LV1E110 |
|---|---|
| Weight [g] | 264 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 080X040X099 |
| Volume [cm³] | 316.8 |
| Bar code [EAN13] | 8013975015766 |
| HS Code | 85364900 |
140.4 £
| Feature Name | Feature Value |
|---|---|
| Physical measurement principle (EF008238) | Conductive |
| Type of electric connection (EF003961) | Screw connection |
| Response value sensitivity adjustable (EF003429) | No |
| With detachable clamps (EF003340) | No |
| Cascadable (EF000507) | No |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of inputs for electrodes (EF003427) | 3 |
| Depth (EF000049) | 84 mm |
| Height (EF000040) | 76 mm |
| Width (EF000008) | 38 mm |
