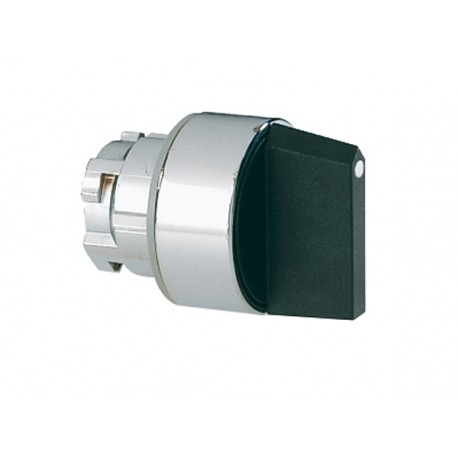

LOVATO ELECTRIC 8LM2TS131 8LM2TS131 LM2TS131 LOVATO SELECTOR SWITCH ACTUATOR KNOB, Ø22MM 8LM METAL SERIES, 3 POSITION, 1 0 2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

8LM2TS131 LM2TS131 LOVATO SELECTOR SWITCH ACTUATOR KNOB, Ø22MM 8LM METAL SERIES, 3 POSITION, 1 0 2

8LM2TS131

LM2TS131

LOVATO ELECTRIC

10 Pcs.

SELECTOR SWITCH ACTUATOR KNOB, Ø22MM 8LM METAL SERIES, 3 POSITION, 1 > 0 < 2 KNOB SELECTOR ACTUATOR 3 POS/ SPRING RET Selector switch actuator knob, Ø22mm 8LM series metal, 3 position, 1 > 0 < 2

Automation > Front element for selector switch
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric selector switch actuator knob provides a manual operator interface for shifting between different operational states or control circuits within industrial control panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA) (EF011959): 4X
  • Colour control element (EF007167): Black
  • Type of control element (EF006976): Short thumb-grip
  • Material front ring (EF005972): Metal
  • Degree of protection (IP), front side (EF003118): IP65
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): No
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of switch positions (EF000231): 3
  • Hole diameter (EF000079): 22 mm

More info

▲

8LM2TS131

Selector switch actuator knob, Ø22mm 8LM series metal, 3 position, 1 > 0 < 2

Technical specifications

Type of actuator:
1 > 0 < 2
Order code8LM2TS131
Weight [g]49
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]150X060X048
Volume [cm³]43.2
Bar code [EAN13]8013975041543
HS Code85365080

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
