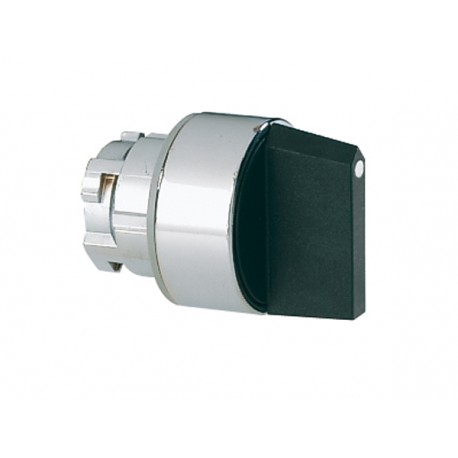

8LM2TS121 LM2TS121 LOVATO SELECTOR SWITCH ACTUATOR KNOB, Ø22MM 8LM METAL SERIES, 2 POSITION, 0 1
8LM2TS121
LM2TS121
LOVATO ELECTRIC
1 Pcs.
Automation > Front element for selector switch
Pushbuttons and selector switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Lovato Electric part number 8LM2TS121 is a knob-style selector switch actuator built for dependable manual circuit control on industrial control panels. Technicians integrate these components into machinery interfaces to toggle between operating modes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (NEMA) (EF011959): 4X
- Colour control element (EF007167): Black
- Type of control element (EF006976): Short thumb-grip
- Material front ring (EF005972): Metal
- Degree of protection (IP), front side (EF003118): IP65
- Switching function latching (EF007447): No
- With front ring (EF006014): Yes
- Spring-return (EF001407): Yes
- Suitable for lighting (EF001142): No
- Height opening (EF004778): 22 mm
- Width opening (EF004565): 22 mm
- Number of switch positions (EF000231): 2
- Hole diameter (EF000079): 22 mm
More info
▲8LM2TS121
Selector switch actuator knob, Ø22mm 8LM series metal, 2 position, 0 < 1
Technical specifications
- Type of actuator:
- 0 < 1
| Order code | 8LM2TS121 |
|---|---|
| Weight [g] | 50 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 150X060X048 |
| Volume [cm³] | 43.2 |
| Bar code [EAN13] | 8013975041529 |
| HS Code | 85365080 |
