View larger
Images are for illustrative purposes only. Please refer to data sheet for details

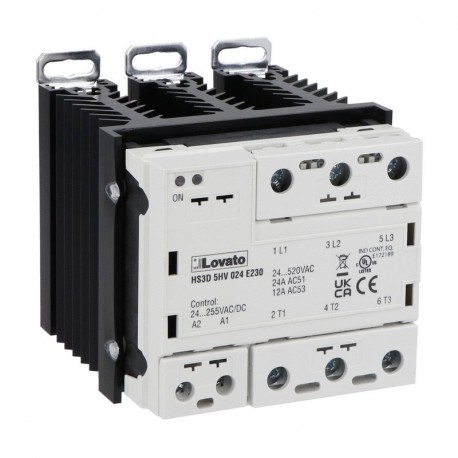

HS3D5HV024E230 LOVATO SOLID STATE RELAY 3P 24A WITH HEAT SINK
HS3D5HV024E230
HS3D5HV024E230
LOVATO ELECTRIC
1 Pcs.
SOLID STATE RELAY 3P 24A WITH HEAT SINK
Solid state relay complete with heatsink, three-phase (3 controlled), 24A, 24…255VAC/DC, screw terminals
RELE' STATO SOLIDO 3P 24A CON DISSIPATORE
Automation > Solid state relay
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲HS3D5HV024E230
Solid state relay complete with heatsink, three-phase (3 controlled), 24A, 24…255VAC/DC, screw terminals
Technical specifications
- Type of product:
- Solid state relays with heatsink, three-phase
- Control voltage [V]:
- 24...255VAC/DC
- Rated operational voltage:
- 24…520
- Rated operating current AC-51 (resistive load) at 40°C:
- 24
- Rated operating current AC-53 (motor load) at 40°C:
- 12
- Number of poles:
- 3
- Operating temperature max:
- +90
- Specific let through energy I2t:
- 2.8
- Type of terminals:
- Screw
| Order code | HS3D5HV024E230 |
|---|---|
| Weight [g] | 740 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 126X098X086 |
| Volume [cm³] | 1061.928 |
| Bar code [EAN13] | 8013975321782 |
| HS Code | 85365003 |
285.77 £
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC/DC |
| Rated control supply voltage DC (EF003980) | 24 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 24 V |
| Rated operation current Ie at AC-53a (EF009489) | 12 A |
| Rated operation current Ie at AC-51 (EF009488) | 24 A |
| Number of phases (EF000351) | 3 |
