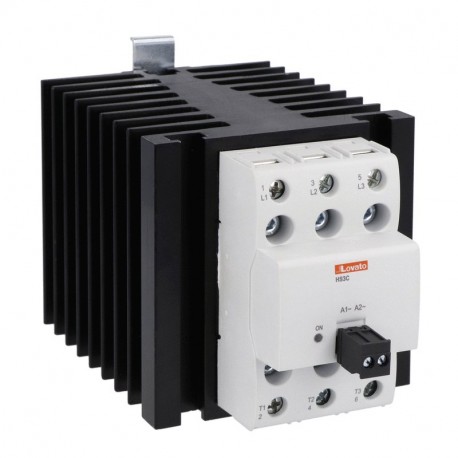

LOVATO ELECTRIC HS3C6HV040D024 HS3C6HV040D024 LOVATO SOLID STATE RELAY 3P 40A WITH HEAT SINK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HS3C6HV040D024 LOVATO SOLID STATE RELAY 3P 40A WITH HEAT SINK

HS3C6HV040D024

HS3C6HV040D024

LOVATO ELECTRIC

1 Pcs.

SOLID STATE RELAY 3P 40A WITH HEAT SINK Solid state relay complete with heatsink, three-phase (3 controlled), 40A, 4...32VDC, screw terminals RELE' STATO SOLIDO 3P 40A CON DISSIPATORE

Automation > Solid state relay

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric HS3C6HV040D024 solid state relay is a three-phase switching device equipped with an integrated heat sink to manage thermal dissipation during heavy electrical loads. Industrial solid state relays provide silent, high-frequency switching for resistive and inductive loads in automated machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Rated control supply voltage DC (EF003980): 4 V
  • Rated operation current Ie at AC-53a (EF009489): 15 A
  • Rated operation current Ie at AC-51 (EF009488): 40 A
  • Number of phases (EF000351): 3

More info

▲

HS3C6HV040D024

Solid state relay complete with heatsink, three-phase (3 controlled), 40A, 4...32VDC, screw terminals

Technical specifications

Type of product:
Solid state relays with heatsink, three-phase
Control voltage [V]:
4...32VDC
Rated operational voltage:
48…600
Rated operating current AC-51 (resistive load) at 40°C:
40
Rated operating current AC-53 (motor load) at 40°C:
15
Number of poles:
3
Operating temperature max:
+80
Specific let through energy I2t:
1.4
Type of terminals:
Screw
Order codeHS3C6HV040D024
Weight [g]1900
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]140X140X190
Volume [cm³]3724
Bar code [EAN13]8013975321515
HS Code85364900

306.68 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
