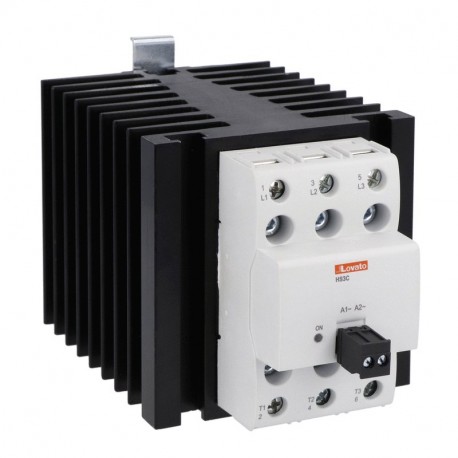

HS3C6HV040A230 LOVATO SOLID STATE RELAY 3P 40A WITH HEAT SINK
HS3C6HV040A230
HS3C6HV040A230
LOVATO ELECTRIC
1 Pcs.
Automation > Solid state relay
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Lovato Electric HS3C6HV040A230 is a three-phase solid state relay complete with an integrated heat sink for thermal management in heavy-duty switching tasks. Three-phase assemblies manage power delivery to motors, large heaters, and industrial loads requiring frequent actuation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Voltage type for actuating (EF008242): AC
- Rated control supply voltage AC 60 Hz (EF003979): 90 V
- Rated control supply voltage AC 50 Hz (EF003978): 90 V
- Rated operation current Ie at AC-53a (EF009489): 15 A
- Rated operation current Ie at AC-51 (EF009488): 40 A
- Number of phases (EF000351): 3
More info
▲HS3C6HV040A230
Solid state relay complete with heatsink, three-phase (3 controlled), 40A, 90...280VAC, screw terminals
Technical specifications
- Type of product:
- Solid state relays with heatsink, three-phase
- Control voltage [V]:
- 90...280VAC
- Rated operational voltage:
- 48…600
- Rated operating current AC-51 (resistive load) at 40°C:
- 40
- Rated operating current AC-53 (motor load) at 40°C:
- 15
- Number of poles:
- 3
- Operating temperature max:
- +80
- Specific let through energy I2t:
- 1.4
- Type of terminals:
- Screw
| Order code | HS3C6HV040A230 |
|---|---|
| Weight [g] | 1900 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 140X140X190 |
| Volume [cm³] | 3724 |
| Bar code [EAN13] | 8013975321522 |
| HS Code | 85364900 |
