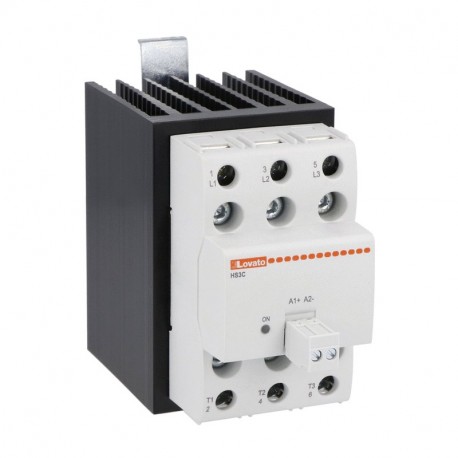

HS3C6HV025D024 LOVATO SOLID STATE RELAY 3P 25A WITH HEAT SINK
HS3C6HV025D024
HS3C6HV025D024
LOVATO ELECTRIC
1 Pcs.
Automation > Solid state relay
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for robust thermal and electrical performance, the Lovato Electric HS3C6HV025D024 solid state relay includes a factory-mounted heat sink for efficient heat dissipation. These assemblies are standard in automated thermal processing systems, packaging equipment, and multi-phase motor drives. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Voltage type for actuating (EF008242): DC
- Rated control supply voltage DC (EF003980): 4 V
- Rated operation current Ie at AC-53a (EF009489): 13.5 A
- Rated operation current Ie at AC-51 (EF009488): 25 A
- Number of phases (EF000351): 3
More info
▲HS3C6HV025D024
Solid state relay complete with heatsink, three-phase (3 controlled), 25A, 4...32VDC, screw terminals
Technical specifications
- Type of product:
- Solid state relays with heatsink, three-phase
- Control voltage [V]:
- 4...32VDC
- Rated operational voltage:
- 48…600
- Rated operating current AC-51 (resistive load) at 40°C:
- 25
- Rated operating current AC-53 (motor load) at 40°C:
- 13.5
- Number of poles:
- 3
- Operating temperature max:
- +80
- Specific let through energy I2t:
- 1.4
- Type of terminals:
- Screw
| Order code | HS3C6HV025D024 |
|---|---|
| Weight [g] | 600 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 121X069X142 |
| Volume [cm³] | 1185.558 |
| Bar code [EAN13] | 8013975321492 |
| HS Code | 85364900 |
