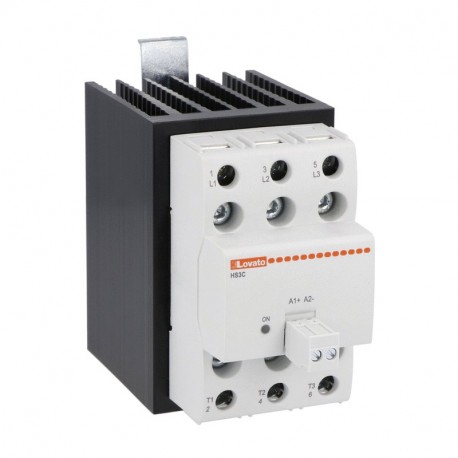

HS3C6HV025A230 LOVATO SOLID STATE RELAY 3P 25A WITH HEAT SINK
HS3C6HV025A230
HS3C6HV025A230
LOVATO ELECTRIC
1 Pcs.
SOLID STATE RELAY 3P 25A WITH HEAT SINK
Solid state relay complete with heatsink, three-phase (3 controlled), 25A, 90...280VAC, screw terminals
RELE' STATO SOLIDO 3P 25A CON DISSIPATORE
Automation > Solid state relay
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲HS3C6HV025A230
Solid state relay complete with heatsink, three-phase (3 controlled), 25A, 90...280VAC, screw terminals
Technical specifications
- Type of product:
- Solid state relays with heatsink, three-phase
- Control voltage [V]:
- 90...280VAC
- Rated operational voltage:
- 48…600
- Rated operating current AC-51 (resistive load) at 40°C:
- 25
- Rated operating current AC-53 (motor load) at 40°C:
- 13.5
- Number of poles:
- 3
- Operating temperature max:
- +80
- Specific let through energy I2t:
- 1.4
- Type of terminals:
- Screw
| Order code | HS3C6HV025A230 |
|---|---|
| Weight [g] | 600 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 121X069X142 |
| Volume [cm³] | 1185.558 |
| Bar code [EAN13] | 8013975321508 |
| HS Code | 85364900 |
274.55 £
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC |
| Rated control supply voltage AC 60 Hz (EF003979) | 90 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 90 V |
| Rated operation current Ie at AC-53a (EF009489) | 13.5 A |
| Rated operation current Ie at AC-51 (EF009488) | 25 A |
| Number of phases (EF000351) | 3 |
