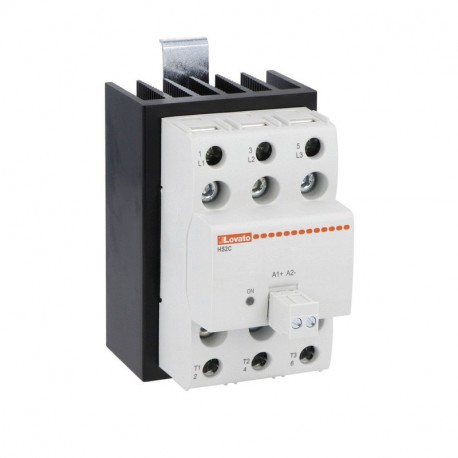

LOVATO ELECTRIC HS3C6HV020A230 HS3C6HV020A230 LOVATO SOLID STATE RELAY 3P 20A WITH HEAT SINK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HS3C6HV020A230 LOVATO SOLID STATE RELAY 3P 20A WITH HEAT SINK

HS3C6HV020A230

HS3C6HV020A230

LOVATO ELECTRIC

1 Pcs.

SOLID STATE RELAY 3P 20A WITH HEAT SINK Solid state relay complete with heatsink, three-phase (3 controlled), 20A, 90...280VAC, screw terminals RELE' STATO SOLIDO 3P 20A CON DISSIPATORE

Automation > Solid state relay

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lovato Electric HS3C6HV020A230 is an integrated three-phase solid state relay complete with a pre-mounted heat sink for optimal thermal performance. Pre-assembled relay and heat sink packages simplify panel building by ensuring correct thermal dissipation for multi-phase industrial loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC
  • Rated control supply voltage AC 60 Hz (EF003979): 90 V
  • Rated control supply voltage AC 50 Hz (EF003978): 90 V
  • Rated operation current Ie at AC-53a (EF009489): 12.5 A
  • Rated operation current Ie at AC-51 (EF009488): 20 A
  • Number of phases (EF000351): 3

More info

▲

HS3C6HV020A230

Solid state relay complete with heatsink, three-phase (3 controlled), 20A, 90...280VAC, screw terminals

Technical specifications

Type of product:
Solid state relays with heatsink, three-phase
Control voltage [V]:
90...280VAC
Rated operational voltage:
48…600
Rated operating current AC-51 (resistive load) at 40°C:
20
Rated operating current AC-53 (motor load) at 40°C:
12.5
Number of poles:
3
Operating temperature max:
+80
Specific let through energy I2t:
1.4
Type of terminals:
Screw
Order codeHS3C6HV020A230
Weight [g]600
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]121X069X142
Volume [cm³]1185.558
Bar code [EAN13]8013975321485
HS Code85364900

250.99 £
