> LOVATO ELECTRIC > HS2C6HV060D024

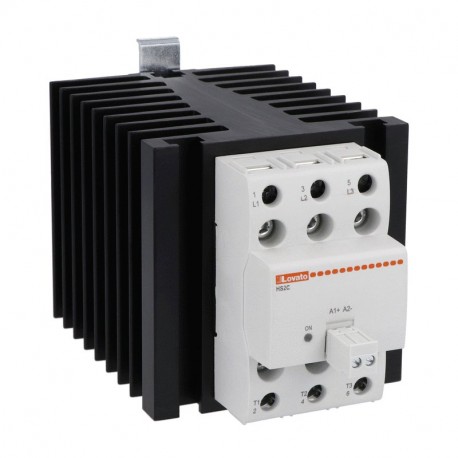

LOVATO ELECTRIC HS2C6HV060D024 HS2C6HV060D024 LOVATO SOLID STATE RELAY 2P 60A WITH HEAT SINK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HS2C6HV060D024 LOVATO SOLID STATE RELAY 2P 60A WITH HEAT SINK

HS2C6HV060D024

HS2C6HV060D024

LOVATO ELECTRIC

1 Pcs.

SOLID STATE RELAY 2P 60A WITH HEAT SINK Solid state relay complete with heatsink, three-phase (2 controlled), 60A, 4...32VDC, screw terminals RELE' STATO SOLIDO 2P 60A CON DISSIPATORE

Automation > Solid state relay

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

HS2C6HV060D024

Solid state relay complete with heatsink, three-phase (2 controlled), 60A, 4...32VDC, screw terminals

Technical specifications

Type of product:
Solid state relays with heatsink, three-phase
Control voltage [V]:
4...32VDC
Rated operational voltage:
48…600
Rated operating current AC-51 (resistive load) at 40°C:
60
Rated operating current AC-53 (motor load) at 40°C:
15
Number of poles:
2
Operating temperature max:
+80
Specific let through energy I2t:
1.4
Type of terminals:
Screw
Order codeHS2C6HV060D024
Weight [g]1900
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]140X140X190
Volume [cm³]3724
Bar code [EAN13]8013975321454
HS Code85364900

367.71 £


ETIM for HS2C6HV060D024 Relays (EC002055)
Feature Name Feature Value
Voltage type for actuating (EF008242) DC
Rated control supply voltage DC (EF003980) 4 V
Rated operation current Ie at AC-53a (EF009489) 15 A
Rated operation current Ie at AC-51 (EF009488) 60 A
Number of phases (EF000351) 3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
