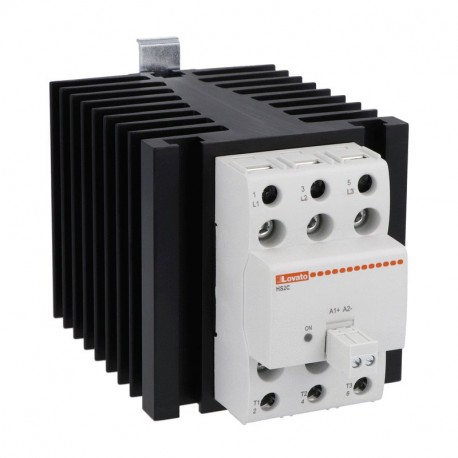

HS2C6HV060A230 LOVATO SOLID STATE RELAY 2P 60A WITH HEAT SINK
HS2C6HV060A230
HS2C6HV060A230
LOVATO ELECTRIC
1 Pcs.
Automation > Solid state relay
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed with an integrated heat sink, this HS2C6HV060A230 Lovato solid state relay manages high-capacity electrical loads while safely dissipating thermal energy. Units of this specification are extensively used across industrial machinery to provide solid-state power control for multi-phase heating and resistive loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Voltage type for actuating (EF008242): AC
- Rated control supply voltage AC 60 Hz (EF003979): 90 V
- Rated control supply voltage AC 50 Hz (EF003978): 90 V
- Rated operation current Ie at AC-53a (EF009489): 15 A
- Rated operation current Ie at AC-51 (EF009488): 60 A
- Number of phases (EF000351): 3
More info
▲HS2C6HV060A230
Solid state relay complete with heatsink, three-phase (2 controlled), 60A, 90...280VAC, screw terminals
Technical specifications
- Type of product:
- Solid state relays with heatsink, three-phase
- Control voltage [V]:
- 90...280VAC
- Rated operational voltage:
- 48…600
- Rated operating current AC-51 (resistive load) at 40°C:
- 60
- Rated operating current AC-53 (motor load) at 40°C:
- 15
- Number of poles:
- 2
- Operating temperature max:
- +80
- Specific let through energy I2t:
- 1.4
- Type of terminals:
- Screw
| Order code | HS2C6HV060A230 |
|---|---|
| Weight [g] | 1900 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 140X140X190 |
| Volume [cm³] | 3724 |
| Bar code [EAN13] | 8013975321461 |
| HS Code | 85364900 |
