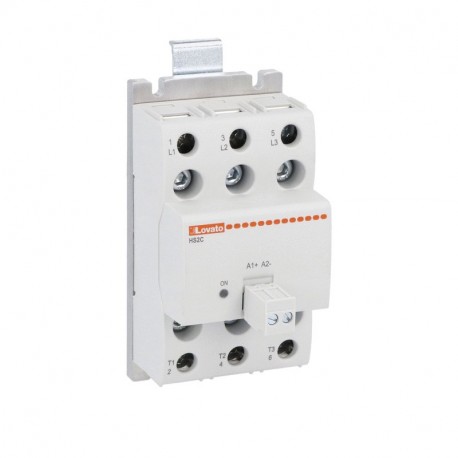

LOVATO ELECTRIC HS2C6HV015D024 HS2C6HV015D024 LOVATO SOLID STATE RELAY 2P 15A WITH HEAT SINK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HS2C6HV015D024 LOVATO SOLID STATE RELAY 2P 15A WITH HEAT SINK

HS2C6HV015D024

HS2C6HV015D024

LOVATO ELECTRIC

1 Pcs.

SOLID STATE RELAY 2P 15A WITH HEAT SINK Solid state relay complete with heatsink, three-phase (2 controlled), 15A, 4...32VDC, screw terminals RELE' STATO SOLIDO 2P 15A CON DISSIPATORE

Automation > Solid state relay

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric solid state relay HS2C6HV015D024 comes complete with an integrated heat sink to manage thermal dissipation for multi-phase electrical loads. Industrial heating elements and complex automation actuators utilize three-phase semiconductor relays to achieve precise, silent power regulation.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Rated control supply voltage DC (EF003980): 4 V
  • Rated operation current Ie at AC-53a (EF009489): 7 A
  • Rated operation current Ie at AC-51 (EF009488): 15 A
  • Number of phases (EF000351): 3

More info

▲

HS2C6HV015D024

Solid state relay complete with heatsink, three-phase (2 controlled), 15A, 4...32VDC, screw terminals

Technical specifications

Type of product:
Solid state relays with heatsink, three-phase
Control voltage [V]:
4...32VDC
Rated operational voltage:
48…600
Rated operating current AC-51 (resistive load) at 40°C:
15
Rated operating current AC-53 (motor load) at 40°C:
7
Number of poles:
2
Operating temperature max:
+80
Specific let through energy I2t:
1.4
Type of terminals:
Screw
Order codeHS2C6HV015D024
Weight [g]350
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]130X060X070
Volume [cm³]546
Bar code [EAN13]8013975321416
HS Code85364900

197.96 £
