View larger
Images are for illustrative purposes only. Please refer to data sheet for details

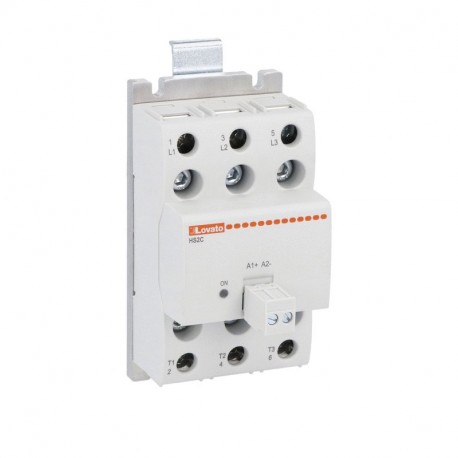

HS2C6HV015A230 LOVATO SOLID STATE RELAY 2P 15A WITH HEAT SINK
HS2C6HV015A230
HS2C6HV015A230
LOVATO ELECTRIC
1 Pcs.
SOLID STATE RELAY 2P 15A WITH HEAT SINK
Solid state relay complete with heatsink, three-phase (2 controlled), 15A, 90...280VAC, screw terminals
RELE' STATO SOLIDO 2P 15A CON DISSIPATORE
Automation > Solid state relay
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲HS2C6HV015A230
Solid state relay complete with heatsink, three-phase (2 controlled), 15A, 90...280VAC, screw terminals
Technical specifications
- Type of product:
- Solid state relays with heatsink, three-phase
- Control voltage [V]:
- 90...280VAC
- Rated operational voltage:
- 48…600
- Rated operating current AC-51 (resistive load) at 40°C:
- 15
- Rated operating current AC-53 (motor load) at 40°C:
- 7
- Number of poles:
- 2
- Operating temperature max:
- +80
- Specific let through energy I2t:
- 1.4
- Type of terminals:
- Screw
| Order code | HS2C6HV015A230 |
|---|---|
| Weight [g] | 350 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 130X060X070 |
| Volume [cm³] | 546 |
| Bar code [EAN13] | 8013975321423 |
| HS Code | 85364900 |
207.67 £
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC |
| Rated control supply voltage AC 60 Hz (EF003979) | 90 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 90 V |
| Rated operation current Ie at AC-53a (EF009489) | 7 A |
| Rated operation current Ie at AC-51 (EF009488) | 15 A |
| Number of phases (EF000351) | 3 |
