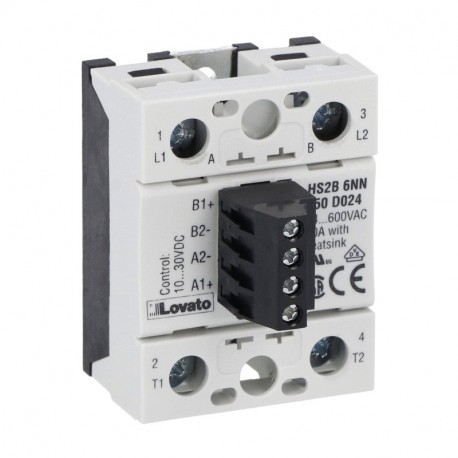

LOVATO ELECTRIC HS2B6NN051D024 HS2B6NN051D024 LOVATO SOLID STATE RELAY 2P 50A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HS2B6NN051D024 LOVATO SOLID STATE RELAY 2P 50A

HS2B6NN051D024

HS2B6NN051D024

LOVATO ELECTRIC

1 Pcs.

SOLID STATE RELAY 2P 50A Hockey puck two-phase, 50A, 10…30VDC, screw terminals RELE' STATO SOLIDO 2P 50A

Automation > Solid state relay

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric HS2B6NN051D024 solid state relay is an electronic switching device built to manage two-phase industrial AC loads with high reliability and zero mechanical wear. Multi-phase semiconductor relays are standard in complex thermal processing systems and machinery controls requiring rapid, repetitive actuation.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Rated control supply voltage DC (EF003980): 10 V
  • Rated operation current Ie at AC-51 (EF009488): 50 A
  • Number of phases (EF000351): 2

More info

▲

HS2B6NN051D024

Hockey puck two-phase, 50A, 10…30VDC, screw terminals

Technical specifications

Type of product:
Hockey puck, two-phase
Control voltage [V]:
10...30VDC
Rated operational voltage:
24…600
Rated operating current AC-51 (resistive load) at 40°C:
50
Heatsink for use at 40°C and 55°C at rated current AC-51:
≤0.3
Number of poles:
2
Operating temperature max:
+90
Specific let through energy I2t:
7.2
Type of terminals:
Screw
Order codeHS2B6NN051D024
Weight [g]100
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]069X056X048
Volume [cm³]185.472
Bar code [EAN13]8013975321713
HS Code85365003

135.04 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
