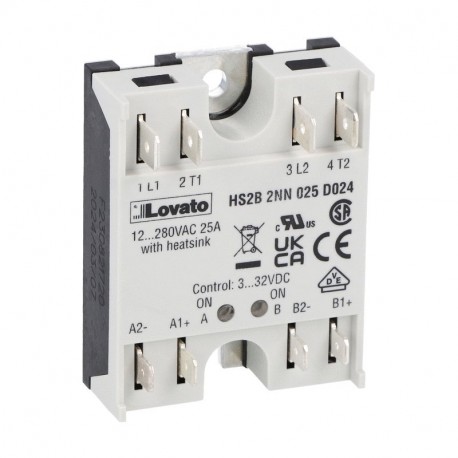

LOVATO ELECTRIC HS2B2NN025D024 HS2B2NN025D024 LOVATO SOLID STATE RELAY 2P 25A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HS2B2NN025D024 LOVATO SOLID STATE RELAY 2P 25A

HS2B2NN025D024

HS2B2NN025D024

LOVATO ELECTRIC

1 Pcs.

SOLID STATE RELAY 2P 25A Hockey puck two-phase, 25A, 3…32VDC, Faston terminals RELE' STATO SOLIDO 2P 25A

Automation > Solid state relay

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The HS2B2NN025D024 Lovato solid state relay is a multi-pole semiconductor switching device utilized in industrial automation to manage alternating current loads securely. These components are commonly integrated into temperature regulation systems and automated production lines to deliver high-frequency cycling without contact degradation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Rated control supply voltage DC (EF003980): 3 V
  • Rated operation current Ie at AC-51 (EF009488): 25 A
  • Number of phases (EF000351): 2

More info

▲

HS2B2NN025D024

Hockey puck two-phase, 25A, 3…32VDC, Faston terminals

Technical specifications

Type of product:
Hockey puck, two-phase
Control voltage [V]:
3...32VDC
Rated operational voltage:
12...280
Rated operating current AC-51 (resistive load) at 40°C:
25
Heatsink for use at 40°C and 55°C at rated current AC-51:
≤0.3
Number of poles:
2
Operating temperature max:
+90
Specific let through energy I2t:
340
Type of terminals:
Faston
Order codeHS2B2NN025D024
Weight [g]100
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]069X056X048
Volume [cm³]185.472
Bar code [EAN13]8013975321690
HS Code85365003

67.37 £
