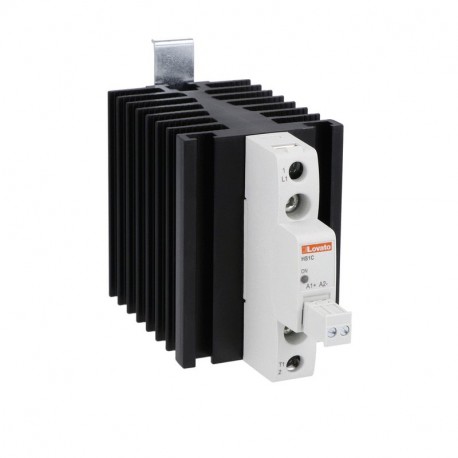

LOVATO ELECTRIC HS1C6HV060D024 HS1C6HV060D024 LOVATO SOLID STATE RELAY 1P 60A WITH HEAT SINK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HS1C6HV060D024 LOVATO SOLID STATE RELAY 1P 60A WITH HEAT SINK

HS1C6HV060D024

HS1C6HV060D024

LOVATO ELECTRIC

1 Pcs.

SOLID STATE RELAY 1P 60A WITH HEAT SINK Solid state relay complete with heatsink, single-phase, 60A, 4...32VDC, screw terminals RELE' STATO SOLIDO 1P 60A CON DISSIPATORE

Automation > Solid state relay

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

HS1C6HV060D024 Lovato Electric solid state relay 1P 60A with heat sink functions as a semiconductor switching device designed to manage heavy electrical loads with high frequency and reliability. Industrial installations utilize these components for precise temperature regulation, motor control, and automated heater management without mechanical wear. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Rated control supply voltage DC (EF003980): 4 V
  • Rated operation current Ie at AC-51 (EF009488): 60 A
  • Number of phases (EF000351): 1

More info

▲

HS1C6HV060D024

Solid state relay complete with heatsink, single-phase, 60A, 4...32VDC, screw terminals

Technical specifications

Type of product:
Solid state relays with heatsink, single-phase
Control voltage [V]:
4...32VDC
Rated operational voltage:
48…600
Rated operating current AC-51 (resistive load) at 40°C:
60
Number of poles:
1
Operating temperature max:
+80
Specific let through energy I2t:
1.35
Type of terminals:
Screw
Order codeHS1C6HV060D024
Weight [g]800
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]121X069X142
Volume [cm³]1185.558
Bar code [EAN13]8013975321362
HS Code85364900

142.76 £
