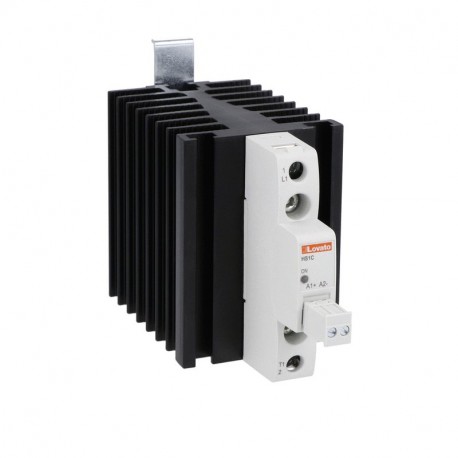

LOVATO ELECTRIC HS1C6HV060A230 HS1C6HV060A230 LOVATO SOLID STATE RELAY 1P 60A WITH HEAT SINK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HS1C6HV060A230 LOVATO SOLID STATE RELAY 1P 60A WITH HEAT SINK

HS1C6HV060A230

HS1C6HV060A230

LOVATO ELECTRIC

1 Pcs.

SOLID STATE RELAY 1P 60A WITH HEAT SINK Solid state relay complete with heatsink, single-phase, 60A, 90...280VAC, screw terminals

Automation > Solid state relay

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric HS1C6HV060A230 is a single-phase solid-state relay supplied with an integrated heat sink for thermal management in continuous-duty systems. Solid-state switching solutions are widely integrated into temperature regulation loops and motion control equipment to eliminate mechanical contact wear. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC
  • Rated control supply voltage AC 60 Hz (EF003979): 90 V
  • Rated control supply voltage AC 50 Hz (EF003978): 90 V
  • Rated operation current Ie at AC-51 (EF009488): 60 A
  • Number of phases (EF000351): 1

More info

▲

HS1C6HV060A230

Solid state relay complete with heatsink, single-phase, 60A, 90...280VAC, screw terminals

Technical specifications

Type of product:
Solid state relays with heatsink, single-phase
Control voltage [V]:
90...280VAC
Rated operational voltage:
48…600
Rated operating current AC-51 (resistive load) at 40°C:
60
Number of poles:
1
Operating temperature max:
+80
Specific let through energy I2t:
1.35
Type of terminals:
Screw
Order codeHS1C6HV060A230
Weight [g]800
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]121X069X142
Volume [cm³]1185.558
Bar code [EAN13]8013975321379
HS Code85364900

150.79 £
