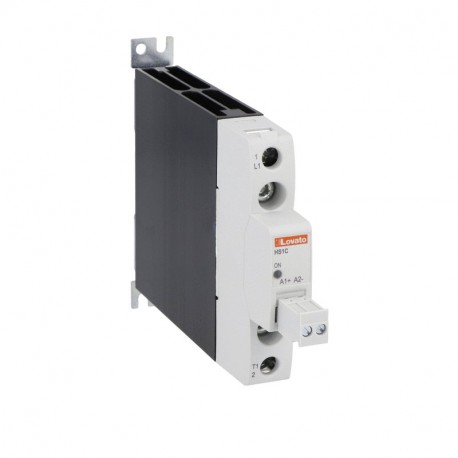

LOVATO ELECTRIC HS1C6HV030A230 HS1C6HV030A230 LOVATO SOLID STATE RELAY 1P 30A WITH HEAT SINK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HS1C6HV030A230 LOVATO SOLID STATE RELAY 1P 30A WITH HEAT SINK

HS1C6HV030A230

HS1C6HV030A230

LOVATO ELECTRIC

1 Pcs.

SOLID STATE RELAY 1P 30A WITH HEAT SINK Solid state relay complete with heatsink, single-phase, 30A, 90...280VAC, screw terminals RELE' STATO SOLIDO 1P 30A CON DISSIPATORE

Automation > Solid state relay

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This HS1C6HV030A230 Lovato solid state relay comes equipped with a dedicated heat sink to maintain optimal thermal performance during continuous single-phase operation. Such assemblies are deployed widely in thermal forming, packaging, and conveyor systems to regulate power delivery safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC
  • Rated control supply voltage AC 60 Hz (EF003979): 90 V
  • Rated control supply voltage AC 50 Hz (EF003978): 90 V
  • Rated operation current Ie at AC-51 (EF009488): 30 A
  • Number of phases (EF000351): 1

More info

▲

HS1C6HV030A230

Solid state relay complete with heatsink, single-phase, 30A, 90...280VAC, screw terminals

Technical specifications

Type of product:
Solid state relays with heatsink, single-phase
Control voltage [V]:
90...280VAC
Rated operational voltage:
48…600
Rated operating current AC-51 (resistive load) at 40°C:
30
Number of poles:
1
Operating temperature max:
+80
Specific let through energy I2t:
1.35
Type of terminals:
Screw
Order codeHS1C6HV030A230
Weight [g]200
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]113X020X138
Volume [cm³]311.88
Bar code [EAN13]8013975321331
HS Code85364900

107.43 £
