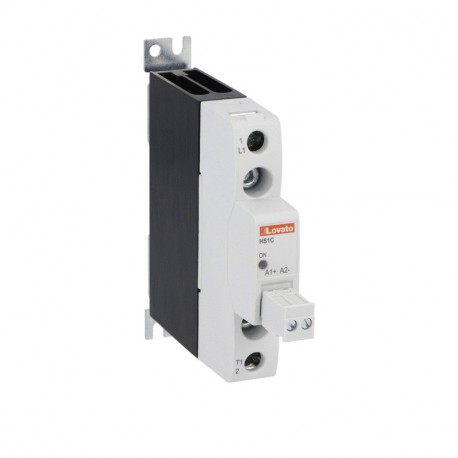

HS1C6HV025D024 LOVATO SOLID STATE RELAY 1P 25A WITH HEAT SINK
HS1C6HV025D024
HS1C6HV025D024
LOVATO ELECTRIC
1 Pcs.
Automation > Solid state relay
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A solid state relay with heat sink from Lovato Electric, model HS1C6HV025D024, provides dependable electronic power switching for industrial automation tasks. These components manage heavy electrical loads with silent operation and rapid response times, making them ideal for temperature regulation and motor control applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Voltage type for actuating (EF008242): DC
- Rated control supply voltage DC (EF003980): 4 V
- Rated operation current Ie at AC-51 (EF009488): 25 A
- Number of phases (EF000351): 1
More info
▲HS1C6HV025D024
Solid state relay complete with heatsink, single-phase, 25A, 4...32VDC, screw terminals
Technical specifications
- Type of product:
- Solid state relays with heatsink, single-phase
- Control voltage [V]:
- 4...32VDC
- Rated operational voltage:
- 48…600
- Rated operating current AC-51 (resistive load) at 40°C:
- 25
- Number of poles:
- 1
- Operating temperature max:
- +80
- Specific let through energy I2t:
- 1.35
- Type of terminals:
- Screw
| Order code | HS1C6HV025D024 |
|---|---|
| Weight [g] | 200 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 113X020X138 |
| Volume [cm³] | 311.88 |
| Bar code [EAN13] | 8013975321294 |
| HS Code | 85364900 |
