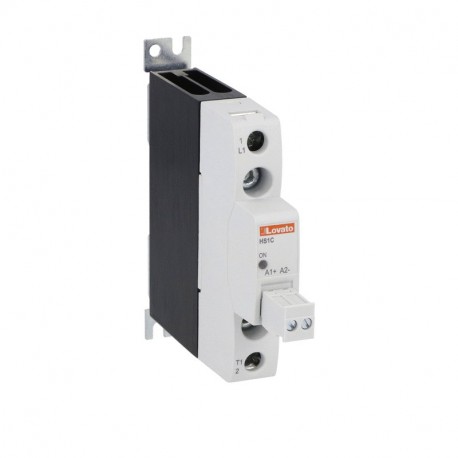

HS1C6HV020A230 LOVATO SOLID STATE RELAY 1P 20A WITH HEAT SINK
HS1C6HV020A230
HS1C6HV020A230
LOVATO ELECTRIC
1 Pcs.
Automation > Solid state relay
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
HS1C6HV020A230 is a Lovato solid state relay featuring a single-phase configuration with a pre-mounted heat sink for efficient thermal management. Solid state relays are widely utilized in industrial heating and motor control applications to provide silent, high-frequency electronic switching without mechanical wear.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Voltage type for actuating (EF008242): AC
- Rated control supply voltage AC 60 Hz (EF003979): 90 V
- Rated control supply voltage AC 50 Hz (EF003978): 90 V
- Rated operation current Ie at AC-51 (EF009488): 20 A
- Number of phases (EF000351): 1
More info
▲HS1C6HV020A230
Solid state relay complete with heatsink, single-phase, 20A, 90...280VAC, screw terminals
Technical specifications
- Type of product:
- Solid state relays with heatsink, single-phase
- Control voltage [V]:
- 90...280VAC
- Rated operational voltage:
- 48…600
- Rated operating current AC-51 (resistive load) at 40°C:
- 20
- Number of poles:
- 1
- Operating temperature max:
- +80
- Specific let through energy I2t:
- 0.8
- Type of terminals:
- Screw
| Order code | HS1C6HV020A230 |
|---|---|
| Weight [g] | 200 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 113X020X138 |
| Volume [cm³] | 311.88 |
| Bar code [EAN13] | 8013975321270 |
| HS Code | 85364900 |
