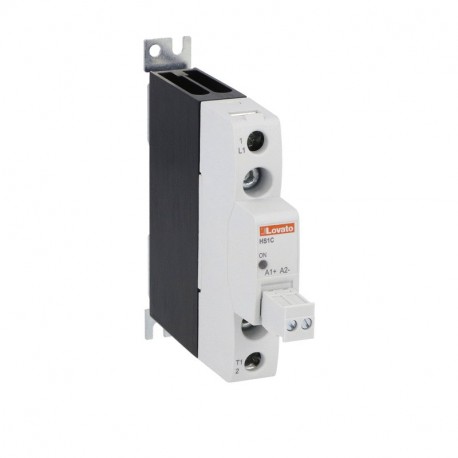

LOVATO ELECTRIC HS1C2HV025D024 HS1C2HV025D024 LOVATO SOLID STATE RELAY 1P 25A WITH HEAT SINK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HS1C2HV025D024 LOVATO SOLID STATE RELAY 1P 25A WITH HEAT SINK

HS1C2HV025D024

HS1C2HV025D024

LOVATO ELECTRIC

1 Pcs.

SOLID STATE RELAY 1P 25A WITH HEAT SINK Solid state relay complete with heatsink, single-phase, 25A, 3...32VDC, screw terminals RELE' STATO SOLIDO 1P 25A CON DISSIPATORE

Automation > Solid state relay

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A solid state relay with heat sink by Lovato Electric, part number HS1C2HV025D024, delivers reliable non-contact switching for AC loads while managing thermal dissipation effectively. Electrical panels utilize integrated assemblies like this to simplify installation and protect against overheating during continuous operation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Rated control supply voltage DC (EF003980): 2 V
  • Rated operation current Ie at AC-51 (EF009488): 25 A
  • Number of phases (EF000351): 1

More info

▲

HS1C2HV025D024

Solid state relay complete with heatsink, single-phase, 25A, 3...32VDC, screw terminals

Technical specifications

Type of product:
Solid state relays with heatsink, single-phase
Control voltage [V]:
3...32VDC
Rated operational voltage:
12…275
Rated operating current AC-51 (resistive load) at 40°C:
25
Number of poles:
1
Operating temperature max:
+80
Specific let through energy I2t:
1.35
Type of terminals:
Screw
Order codeHS1C2HV025D024
Weight [g]200
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]113X020X138
Volume [cm³]311.88
Bar code [EAN13]8013975321287
HS Code85364900

98.88 £
