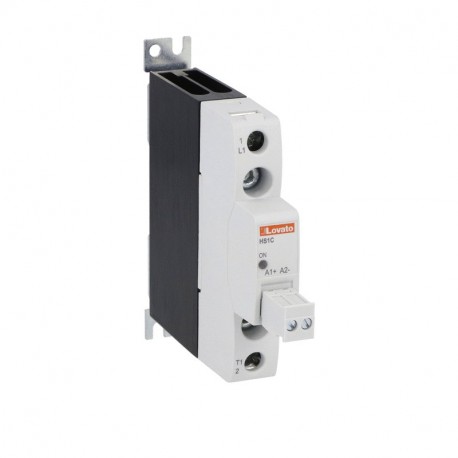

LOVATO ELECTRIC HS1C2HV020D024 HS1C2HV020D024 LOVATO SOLID STATE RELAY 1P 20A WITH HEAT SINK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HS1C2HV020D024 LOVATO SOLID STATE RELAY 1P 20A WITH HEAT SINK

HS1C2HV020D024

HS1C2HV020D024

LOVATO ELECTRIC

1 Pcs.

SOLID STATE RELAY 1P 20A WITH HEAT SINK Solid state relay complete with heatsink, single-phase, 20A, 3...32VDC, screw terminals

Automation > Solid state relay

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

HS1C2HV020D024

Solid state relay complete with heatsink, single-phase, 20A, 3...32VDC, screw terminals

Technical specifications

Type of product:
Solid state relays with heatsink, single-phase
Control voltage [V]:
3...32VDC
Rated operational voltage:
12…275
Rated operating current AC-51 (resistive load) at 40°C:
20
Number of poles:
1
Operating temperature max:
+80
Specific let through energy I2t:
0.8
Type of terminals:
Screw
Order codeHS1C2HV020D024
Weight [g]200
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]113X020X138
Volume [cm³]311.88
Bar code [EAN13]8013975321256
HS Code85364900

74.23 £


ETIM for HS1C2HV020D024 Relays (EC002055)
Feature Name Feature Value
Voltage type for actuating (EF008242) DC
Rated control supply voltage DC (EF003980) 3 V
Rated operation current Ie at AC-51 (EF009488) 20 A
Number of phases (EF000351) 1
