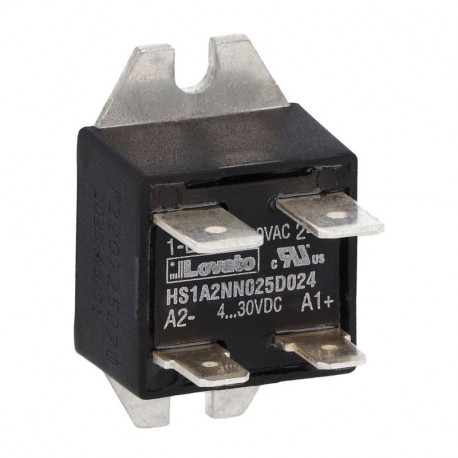

LOVATO ELECTRIC HS1A2NN025D024 HS1A2NN025D024 LOVATO SOLID STATE RELAY 1P 25A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HS1A2NN025D024 LOVATO SOLID STATE RELAY 1P 25A

HS1A2NN025D024

HS1A2NN025D024

LOVATO ELECTRIC

1 Pcs.

SOLID STATE RELAY 1P 25A Miniature solid state relay, single-phase, 25A, 4…30VDC, Faston terminals RELE' STATO SOLIDO 1P 25A

Automation > Solid state relay

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An HS1A2NN025D024 Lovato solid state relay 1P 25A is a semiconductor-based switching device utilized to control electrical loads in industrial automation systems without mechanical wear. These relays provide rapid, silent switching for heating elements, lighting controls, and motor control circuits where frequent cycling is required. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Rated control supply voltage DC (EF003980): 4 V
  • Rated operation current Ie at AC-53a (EF009489): 7 A
  • Rated operation current Ie at AC-51 (EF009488): 25 A
  • Number of phases (EF000351): 1

More info

▲

HS1A2NN025D024

Miniature solid state relay, single-phase, 25A, 4…30VDC, Faston terminals

Technical specifications

Type of product:
Miniature, single-phase
Control voltage [V]:
4...30VDC
Rated operational voltage:
12...280
Rated operating current AC-51 (resistive load) at 40°C:
25
Rated operating current AC-53 (motor load) at 40°C:
7
Heatsink for use at 40°C and 55°C at rated current AC-51:
≤1.2
Number of poles:
1
Operating temperature max:
+90
Specific let through energy I2t:
340
Type of terminals:
Faston
Order codeHS1A2NN025D024
Weight [g]17.7
Qty. per package4
Multiple qty. of packs per order4
Package dimensions [mm]075X049X038
Volume [cm³]34.912
Bar code [EAN13]8013975321539
HS Code85365003
