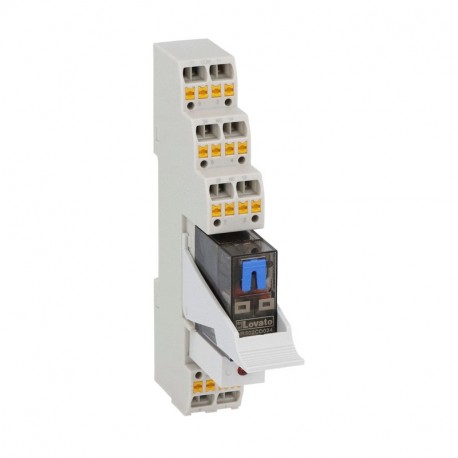

LOVATO ELECTRIC HRA502CD024K5 HRA502CD024K5 LOVATO RELAY 2SC 8A 24VDC, LED+POWER+Screw View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HRA502CD024K5 LOVATO RELAY 2SC 8A 24VDC, LED+POWER+Screw

HRA502CD024K5

HRA502CD024K5

LOVATO ELECTRIC

1 Pcs.

RELAY 2SC 8A 24VDC, LED+POWER+Screw Assembled miniature relay with LED state indicator and mechanical actuator, 24VDC, 8A, 2C/O contact. Push-in terminals with retain/release clip and suppressor filter

Automation > Switching relay
Industrial relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for industrial control systems, this HRA502CD024K5 LOVATO RELAY 2SC 8A 24VDC, LED+POWER+Screw functions as an electromagnetic switching device used to isolate signals and govern medium-power loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 24 V
  • Number of contacts as change-over contact (EF008257): 2
  • Number of contacts as normally open contact (EF008256): 0
  • Number of contacts as normally closed contact (EF008255): 0
  • Nominal current (EF000001): 8 A
  • With LED indication (EF005950): No
  • Complete with socket (EF003359): Yes
  • With forced-guided contacts (EF003357): No
  • With detachable clamps (EF003340): No
  • Voltage type for actuating (EF008242): DC
  • Degree of protection (IP) (EF005474): IP20
  • Type of electric connection (EF003961): Spring clamp connection
  • Type of switch contact (EF003358): Single contact
  • Drive, switching attitude (EF003356): Mono stable
  • Drive, polarization (EF003355): Polarized

More info

▲

HRA502CD024K5

Assembled miniature relay with LED state indicator and mechanical actuator, 24VDC, 8A, 2C/O contact. Push-in terminals with retain/release clip and suppressor filter

Technical specifications

Type of product:
Assembled miniature relays
Type of contacts:
2 C/O
Relay control voltage:
24VDC
IEC Conventional free air thermal current Ith [A]:
8
LED state indicator:
Yes
Mechanical actuator:
Yes
Type of socket:
Spring terminals
Order codeHRA502CD024K5
Weight [g]85.78
Qty. per package5
Multiple qty. of packs per order5
Package dimensions [mm]126X092X085
Volume [cm³]197.064
Bar code [EAN13]8013975322284
HS Code85364900

24.78 £
