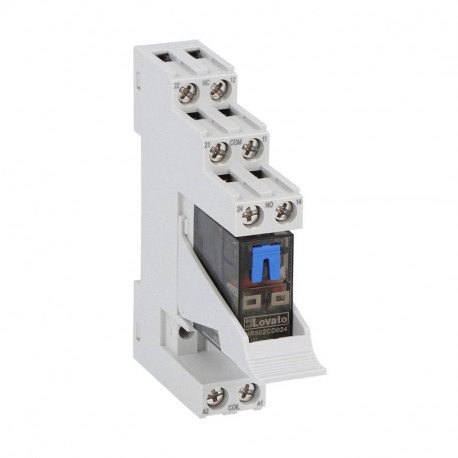

HRA502CD024K4 LOVATO RELAY 2SC 8A 24VDC + LED + Screw
HRA502CD024K4
HRA502CD024K4
LOVATO ELECTRIC
1 Pcs.
Automation > Switching relay
Industrial relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The HRA502CD024K4 Lovato Electric relay is an electromechanical switching component utilized in industrial control panels to isolate control circuits and switch moderate electrical loads. Relays of this type provide reliable signal multiplication and galvanic separation between low-voltage controllers and field actuators.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage DC (EF003980): 24 V
- Number of contacts as change-over contact (EF008257): 2
- Number of contacts as normally open contact (EF008256): 0
- Number of contacts as normally closed contact (EF008255): 0
- Nominal current (EF000001): 8 A
- With LED indication (EF005950): No
- Complete with socket (EF003359): Yes
- With forced-guided contacts (EF003357): No
- With detachable clamps (EF003340): No
- Voltage type for actuating (EF008242): DC
- Degree of protection (IP) (EF005474): IP20
- Type of electric connection (EF003961): Spring clamp connection
- Type of switch contact (EF003358): Single contact
- Drive, switching attitude (EF003356): Mono stable
- Drive, polarization (EF003355): Polarized
More info
▲HRA502CD024K4
Assembled miniature relay with LED state indicator and mechanical actuator, 24VDC, 8A, 2C/O contact. Screw terminals with retain/release clip
Technical specifications
- Type of product:
- Assembled miniature relays
- Type of contacts:
- 2 C/O
- Relay control voltage:
- 24VDC
- IEC Conventional free air thermal current Ith [A]:
- 8
- LED state indicator:
- Yes
- Mechanical actuator:
- Yes
- Type of socket:
- Screw terminals
| Order code | HRA502CD024K4 |
|---|---|
| Weight [g] | 91.44 |
| Qty. per package | 5 |
| Multiple qty. of packs per order | 5 |
| Package dimensions [mm] | 126X092X085 |
| Volume [cm³] | 197.064 |
| Bar code [EAN13] | 8013975322277 |
| HS Code | 85364900 |
