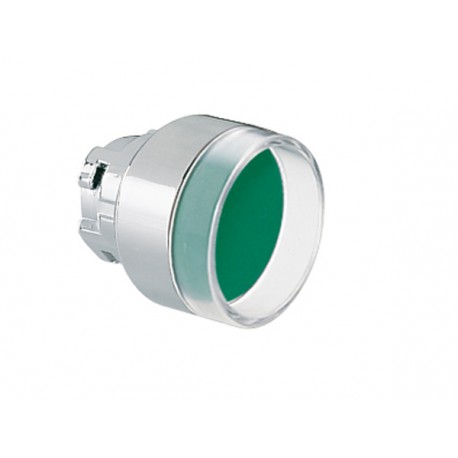

8LM2TB303 LM2TB303 LOVATO PUSHBUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, SHROUDED, GREEN
8LM2TB303
LM2TB303
LOVATO ELECTRIC
10 Pcs.
PUSHBUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, SHROUDED, GREEN
GREEN SHROUDED BUTTON ACTUATOR
Pushbutton actuator, spring return, Ø22mm 8LM series metal, shrouded, green
Automation > Front element for push button
Pushbuttons and selector switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲8LM2TB303
Pushbutton actuator, spring return, Ø22mm 8LM series metal, shrouded, green
Technical specifications
- Colour:
- Green
| Order code | 8LM2TB303 |
|---|---|
| Weight [g] | 31 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 150X060X038 |
| Volume [cm³] | 34.2 |
| Bar code [EAN13] | 8013975040492 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA), front side (EF011961) | 4X |
| Construction type lens (EF006253) | Round |
| Material front ring (EF005972) | Metal |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Type of button (EF001546) | Other |
| Colour button (EF000190) | Green |
| Switching function latching (EF007447) | No |
| With front ring (EF006014) | Yes |
| With protective cover (EF005500) | No |
| Labelled (EF001537) | No |
| Spring-return (EF001407) | Yes |
| Suitable for lighting (EF001142) | No |
| Height opening (EF004778) | 22 mm |
| Width opening (EF004565) | 22 mm |
| Number of command positions (EF001372) | 1 |
| Hole diameter (EF000079) | 22 mm |
