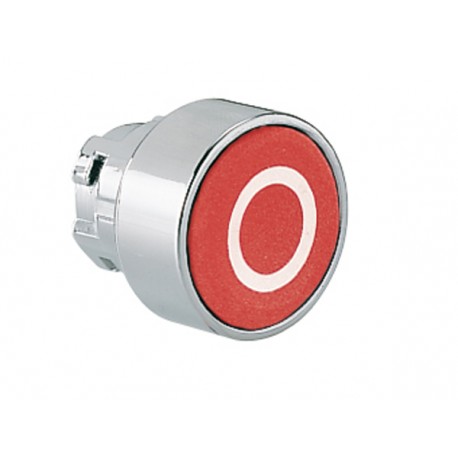

LOVATO ELECTRIC 8LM2TB1163 8LM2TB1163 LM2TB1163 LOVATO PUSHBUTTON ACTUATOR, SPRING RETURN, WITH SYMBOL, Ø22MM 8LM METAL SERIES, FLUSH, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

8LM2TB1163 LM2TB1163 LOVATO PUSHBUTTON ACTUATOR, SPRING RETURN, WITH SYMBOL, Ø22MM 8LM METAL SERIES, FLUSH, ..

8LM2TB1163

LM2TB1163

LOVATO ELECTRIC

1 Pcs.

PUSHBUTTON ACTUATOR, SPRING RETURN, WITH SYMBOL, Ø22MM 8LM METAL SERIES, FLUSH, START / GREEN Green Metal Grade Button with START symbol Pushbutton actuator, spring return, with symbol, Ø22mm 8LM series metal, flush, START/Green

Automation > Front element for push button
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An 8LM2TB1163 LM2TB1163 LOVATO PUSHBUTTON ACTUATOR, SPRING RETURN, WITH SYMBOL, Ø22MM 8LM METAL SERIES, FLUSH, .. from Lovato Electric is a control interface component deployed in industrial control panels. Operators use manual pushbuttons to initiate electrical commands, toggle automation states, or signal operational sequences in machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA), front side (EF011961): 4X
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Metal
  • Degree of protection (IP), front side (EF003118): IP65
  • Colour button (EF000190): Green
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): No
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of command positions (EF001372): 1
  • Hole diameter (EF000079): 22 mm

More info

▲

8LM2TB1163

Pushbutton actuator, spring return, with symbol, Ø22mm 8LM series metal, flush, START/Green

Technical specifications

Colour:
Green
Order code8LM2TB1163
Weight [g]33
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]150X060X038
Volume [cm³]34.2
Bar code [EAN13]8013975048245
HS Code85365080

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
