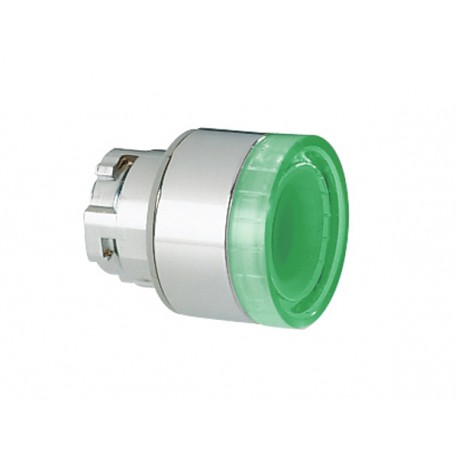

LOVATO ELECTRIC 8LM2TBL103 8LM2TBL103 LM2TBL103 LOVATO ILLUMINATED BUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, FLUSH, WITH .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

8LM2TBL103 LM2TBL103 LOVATO ILLUMINATED BUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, FLUSH, WITH ..

8LM2TBL103

LM2TBL103

LOVATO ELECTRIC

10 Pcs.

ILLUMINATED BUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, FLUSH, WITH SIDE VISIBILITY, GREEN GREEN ILLUMINATED FLUSH BUTTON ACTUATOR Illuminated button actuator, spring return, Ø22mm 8LM series metal, flush, with side visibility, green

Automation > Front element for push button
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric 8LM2TBL103 illuminated button actuator offers a robust metal-bezel interface for industrial machinery control boards. Engineers deploy such spring-return pushbuttons to enable safe, momentary operator commands in demanding manufacturing environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA), front side (EF011961): 4X
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Metal
  • Degree of protection (IP), front side (EF003118): IP65
  • Colour button (EF000190): Green
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): Yes
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of command positions (EF001372): 1
  • Hole diameter (EF000079): 22 mm

More info

▲

8LM2TBL103

Illuminated button actuator, spring return, Ø22mm 8LM series metal, flush, with side visibility, green

Technical specifications

Colour:
Green
Order code8LM2TBL103
Weight [g]33
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]150X060X038
Volume [cm³]34.2
Bar code [EAN13]8013975041659
HS Code85365080

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
