View larger
Images are for illustrative purposes only. Please refer to data sheet for details

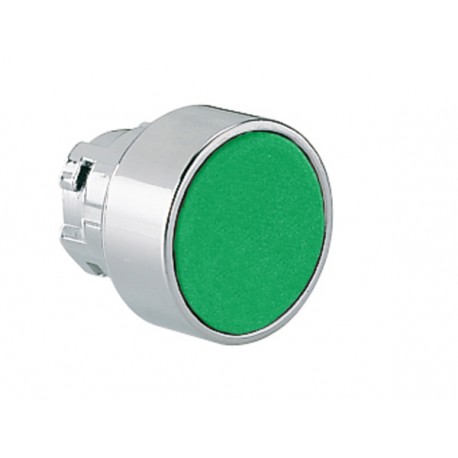

8LM2TQ103 LM2TQ103 LOVATO PUSH-PUSH BUTTON ACTUATOR, Ø22MM 8LM METAL SERIES, FLUSH, GREEN
8LM2TQ103
LM2TQ103
LOVATO ELECTRIC
1 Pcs.
PUSH-PUSH BUTTON ACTUATOR, Ø22MM 8LM METAL SERIES, FLUSH, GREEN
Green Flush Metal Switch
Push-Push button actuator, Ø22mm 8LM series metal, flush, green
Automation > Front element for push button
Pushbuttons and selector switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲8LM2TQ103
Push-Push button actuator, Ø22mm 8LM series metal, flush, green
Technical specifications
- Colour:
- Green
| Order code | 8LM2TQ103 |
|---|---|
| Weight [g] | 35 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 150X060X038 |
| Volume [cm³] | 34.2 |
| Bar code [EAN13] | 8013975109717 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA), front side (EF011961) | 4X |
| Construction type lens (EF006253) | Round |
| Material front ring (EF005972) | Metal |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Type of button (EF001546) | Other |
| Colour button (EF000190) | Green |
| Switching function latching (EF007447) | No |
| With front ring (EF006014) | Yes |
| With protective cover (EF005500) | No |
| Labelled (EF001537) | No |
| Spring-return (EF001407) | Yes |
| Suitable for lighting (EF001142) | No |
| Height opening (EF004778) | 22 mm |
| Width opening (EF004565) | 22 mm |
| Number of command positions (EF001372) | 2 |
| Hole diameter (EF000079) | 22 mm |
