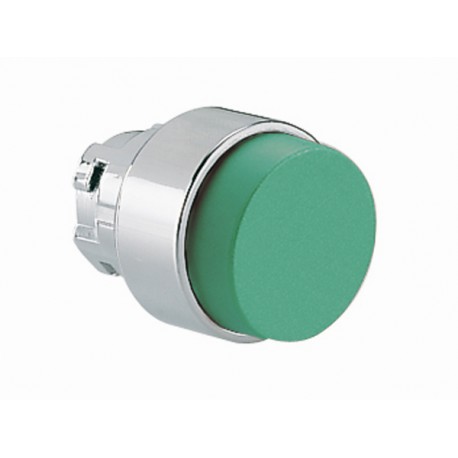

LOVATO ELECTRIC 8LM2TB203 8LM2TB203 LM2TB203 LOVATO PUSHBUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, EXTENDED, GREEN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

8LM2TB203 LM2TB203 LOVATO PUSHBUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, EXTENDED, GREEN

8LM2TB203

LM2TB203

LOVATO ELECTRIC

10 Pcs.

PUSHBUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, EXTENDED, GREEN GREEN EXTENDED BUTTON ACTUATOR Pushbutton actuator, spring return, Ø22mm 8LM series metal, extended, green

Automation > Front element for push button
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric pushbutton actuator provides dependable manual control input for industrial switchgear, operator consoles, and automation machinery. This green extended unit belongs to the 8LM metal series and is engineered with a spring-return mechanism for temporary contact actuation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA), front side (EF011961): 4X
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Metal
  • Degree of protection (IP), front side (EF003118): IP65
  • Colour button (EF000190): Green
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): No
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of command positions (EF001372): 1
  • Hole diameter (EF000079): 22 mm

More info

▲

8LM2TB203

Pushbutton actuator, spring return, Ø22mm 8LM series metal, extended, green

Technical specifications

Colour:
Green
Order code8LM2TB203
Weight [g]35
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]150X060X038
Volume [cm³]34.2
Bar code [EAN13]8013975040409
HS Code85365080
