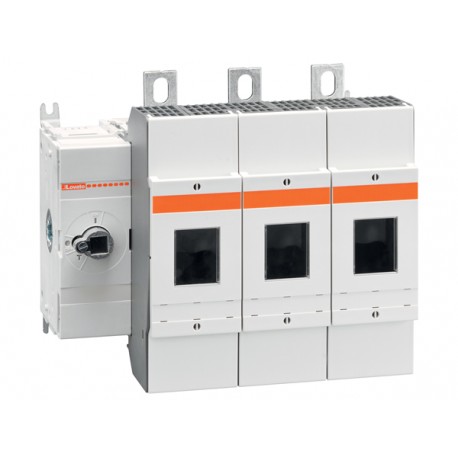

GMFJ400C03 LOVATO THREE-POLE DISCONNECT SWITCH WITH FUSE HOLDER (UL98). 400A. FUSE TYPE J UL. LEFT CONTROL P..
GMFJ400C03
GMFJ400C03
LOVATO ELECTRIC
1 Pcs.
THREE-POLE DISCONNECT SWITCH WITH FUSE HOLDER (UL98). 400A. FUSE TYPE J UL. LEFT CONTROL POST
THREE-POLE DISCONNECT SWITCH WITH FUSE HOLDER (UL98). 400A. J UL FUSE TYPE. LEFT COMMAND POLE
Three-pole disconnect switch with fuse holder (UL98). 400A. J UL fuse type. Left command pole
Connectors > Switch disconnector
Switch disconnectors - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲GMFJ400C03
Three-pole disconnect switch with fuse holder (UL98). 400A. J UL fuse type. Left command pole
Technical specifications
- Type of product:
- Switch disconnectors with fuse holder
- Number of poles:
- 3
- Type of operating voltage:
- AC
- IEC Conventional free air thermal current Ith [A]:
- 400
- UL Standard:
- UL98
- Type of fuse:
- J
- Type of installation:
- Screw on plate
| Order code | GMFJ400C03 |
|---|---|
| Weight [g] | 6600 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 280X240X205 |
| Volume [cm³] | 13776 |
| Bar code [EAN13] | 8013975229774 |
| HS Code | 85365080 |
1983.23 £
| Feature Name | Feature Value |
|---|---|
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Type of control element (EF006976) | Door coupling rotary drive |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Rated operating voltage (EF001435) | 400 V |
| Version as reversing switch (EF009408) | No |
| Voltage release optional (EF007491) | No |
| Motor drive optional (EF007386) | No |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for front mounting 4-hole (EF007247) | No |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as main switch (EF006981) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Motor drive integrated (EF006697) | No |
| Interlockable (EF006281) | No |
| Rated permanent current at AC-23, 400 V (EF011777) | 400 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 400 A |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated short-time withstand current lcw (EF007050) | 14 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 220 kW |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Conditioned rated short-circuit current Iq (EF001444) | 200 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
