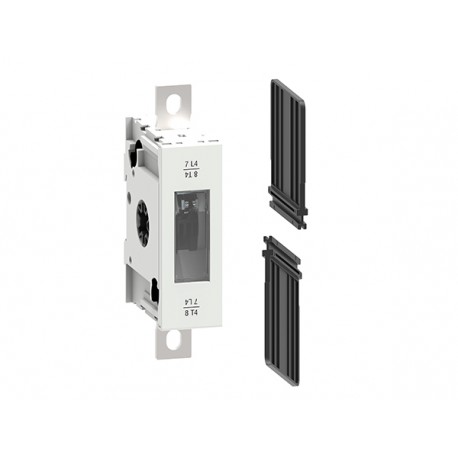

GLX420100UL LOVATO 4TH POLE FOR GL SWITCH DISC. 100A UL
GLX420100UL
420100
LOVATO ELECTRIC
1 Pcs.
4TH POLE FOR GL SWITCH DISC. 100A UL
Fourth pole add-on, simultaneous closing operation as switch disconnector poles, UL98. For GL0100C1UL version
Automation > Accessories/spare parts for low-voltage switch technology
Switch disconnectors - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲GLX420100UL
Fourth pole add-on, simultaneous closing operation as switch disconnector poles, UL98. For GL0100C1UL version
Technical specifications
- Type of product:
- Accessories
- Number of poles:
- 1
- Type of operating voltage:
- AC
- IEC Conventional free air thermal current Ith [A]:
- 160
- UL Standard:
- UL98
- Type of accessories:
- Fourth pole add-on
- Accessories for:
- GL0100C1UL
| Order code | GLX420100UL |
|---|---|
| Weight [g] | 413.1 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 164X080X042 |
| Volume [cm³] | 551.04 |
| Bar code [EAN13] | 8013975294765 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | 4th pole |
| Spare part (EF013237) | No |
| Accessory (EF013236) | Yes |
