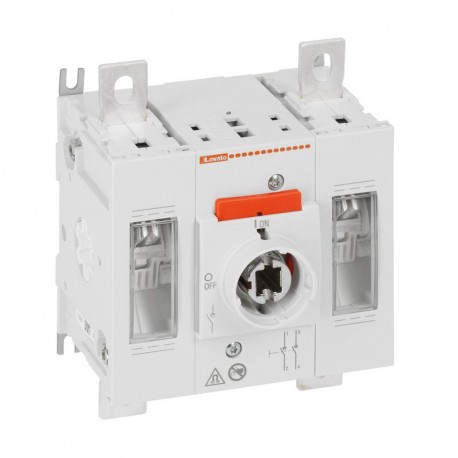

LOVATO ELECTRIC GLD0315T2C3 GLD0315T2C3 LOVATO 2P. DISCONNECT SWITCH 315A 1000V CC21B View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GLD0315T2C3 LOVATO 2P. DISCONNECT SWITCH 315A 1000V CC21B

GLD0315T2C3

GLD0315T2C3

LOVATO ELECTRIC

1 Pcs.

2P. DISCONNECT SWITCH 315A 1000V CC21B Two-pole switch disconnector for photovoltaic applications, direct operating and door-coupling version, 315A 800V DCPV-1

Connectors > Switch disconnector
Switch disconnectors - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric disconnect switch, part number GLD0315T2C3, functions as a manual control device used to interrupt the flow of electrical current in industrial distribution circuits and machinery feeds. Technicians rely on such disconnects to guarantee safe equipment isolation during routine servicing and emergency shutdowns.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operating voltage (EF001435): 0 V
  • Number of switches (EF005586): 1
  • Number of poles (EF001391): 2
  • Rated permanent current Iu (EF001389): 315 A
  • Version as reversing switch (EF009408): No
  • Voltage release optional (EF007491): No
  • Motor drive optional (EF007386): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for front mounting centre (EF007248): No
  • Suitable for front mounting 4-hole (EF007247): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as main switch (EF006981): Yes
  • Version as emergency stop installation (EF006959): No
  • Motor drive integrated (EF006697): No

More info

▲

GLD0315T2C3

Two-pole switch disconnector for photovoltaic applications, direct operating and door-coupling version, 315A 800V DCPV-1

Technical specifications

Type of product:
Switch disconnectors
Number of poles:
2
Type of operating voltage:
DC
IEC Conventional free air thermal current Ith [A]:
315
Type of installation:
Screw on plate or 35mm DIN rail
For photovoltaic application:
Yes
Order codeGLD0315T2C3
Weight [g]1305
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]205X100X170
Volume [cm³]3485
Bar code [EAN13]8013975320730
HS Code85365080
