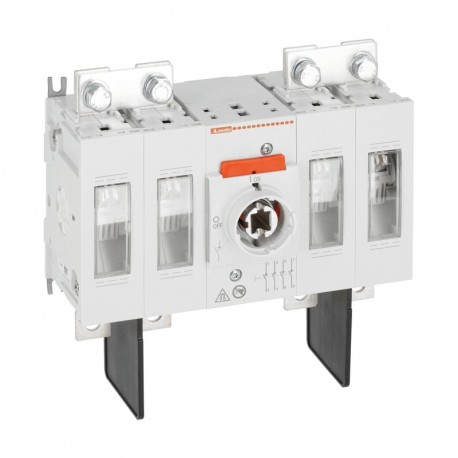

GLD0250T4C3 LOVATO 4P. DISCONNECTOR SWITCH. 250A 1500V DC21B
GLD0250T4C3
GLD0250T4C3
LOVATO ELECTRIC
1 Pcs.
Connectors > Switch disconnector
Switch disconnectors - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Optimized for photovoltaic and high-voltage DC networks, the Lovato Electric 4P disconnector switch GLD0250T4C3 safely breaks heavy direct currents. Four-pole DC disconnectors are standard equipment in renewable energy installations to isolate inverter inputs and safeguard service personnel. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated operating voltage (EF001435): 0 V
- Number of switches (EF005586): 1
- Number of poles (EF001391): 4
- Rated permanent current Iu (EF001389): 250 A
- Version as reversing switch (EF009408): No
- Voltage release optional (EF007491): No
- Motor drive optional (EF007386): No
- Suitable for intermediate mounting (EF007264): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for front mounting centre (EF007248): No
- Suitable for front mounting 4-hole (EF007247): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as main switch (EF006981): Yes
- Version as emergency stop installation (EF006959): No
- Motor drive integrated (EF006697): No
More info
▲GLD0250T4C3
Three-pole switch disconnector for photovoltaic applications, direct operating and door-coupling version, 250A 1500V DCPV-1
Technical specifications
- Type of product:
- Switch disconnectors
- Number of poles:
- 4
- Type of operating voltage:
- DC
- IEC Conventional free air thermal current Ith [A]:
- 250
- Type of installation:
- Screw on plate or 35mm DIN rail
- For photovoltaic application:
- Yes
| Order code | GLD0250T4C3 |
|---|---|
| Weight [g] | 2175 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 160X168X105 |
| Volume [cm³] | 2822.4 |
| Bar code [EAN13] | 8013975320716 |
| HS Code | 85365080 |
