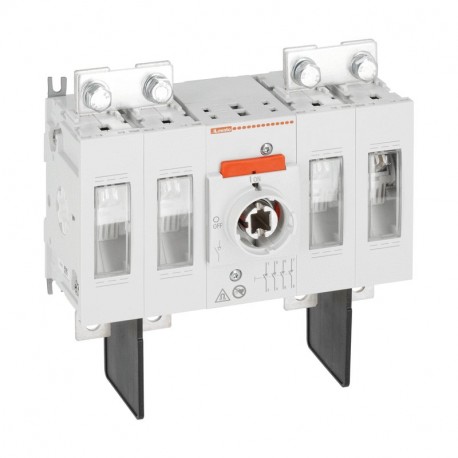

LOVATO ELECTRIC GLD0160T4C3 GLD0160T4C3 LOVATO 4P. DISCONNECT SWITCH. 160A 1500V CC21B View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GLD0160T4C3 LOVATO 4P. DISCONNECT SWITCH. 160A 1500V CC21B

GLD0160T4C3

GLD0160T4C3

LOVATO ELECTRIC

1 Pcs.

4P. DISCONNECT SWITCH. 160A 1500V CC21B Three-pole switch disconnector for photovoltaic applications, direct operating and door-coupling version, 160A 1500V DCPV-1

Connectors > Switch disconnector
Switch disconnectors - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A GLD0160T4C3 Lovato Electric 4P. disconnect switch. 160A 1500V CC21B is a multi-pole electrical switching device engineered to safely isolate power circuits during maintenance routines. These disconnectors are commonly integrated into industrial control panels to handle high current ratings.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operating voltage (EF001435): 0 V
  • Number of switches (EF005586): 1
  • Number of poles (EF001391): 4
  • Rated permanent current Iu (EF001389): 160 A
  • Version as reversing switch (EF009408): No
  • Voltage release optional (EF007491): No
  • Motor drive optional (EF007386): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for front mounting centre (EF007248): No
  • Suitable for front mounting 4-hole (EF007247): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as main switch (EF006981): Yes
  • Version as emergency stop installation (EF006959): No
  • Motor drive integrated (EF006697): No

More info

▲

GLD0160T4C3

Three-pole switch disconnector for photovoltaic applications, direct operating and door-coupling version, 160A 1500V DCPV-1

Technical specifications

Type of product:
Switch disconnectors
Number of poles:
4
Type of operating voltage:
DC
IEC Conventional free air thermal current Ith [A]:
160
Type of installation:
Screw on plate or 35mm DIN rail
For photovoltaic application:
Yes
Order codeGLD0160T4C3
Weight [g]2175
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]160X168X105
Volume [cm³]2822.4
Bar code [EAN13]8013975320648
HS Code85365080

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
