View larger
Images are for illustrative purposes only. Please refer to data sheet for details

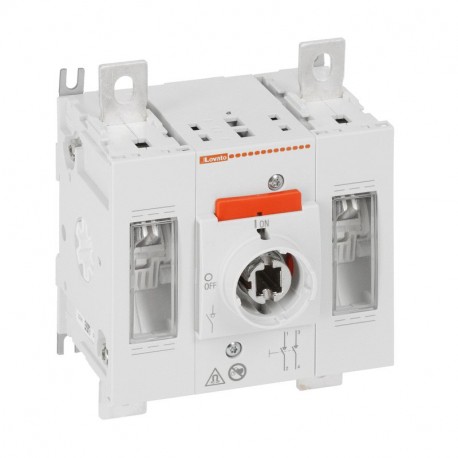

GLD0100T2C3 LOVATO 2P DISCONNECTOR SWITCH. 100A 1000V CC21B
GLD0100T2C3
GLD0100T2C3
LOVATO ELECTRIC
1 Pcs.
2P DISCONNECTOR SWITCH. 100A 1000V CC21B
Switch disconnector for photovoltaic applications, direct operating and door-coupling version, 100A 1000V DCPV-1
Connectors > Switch disconnector
Switch disconnectors - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲GLD0100T2C3
Switch disconnector for photovoltaic applications, direct operating and door-coupling version, 100A 1000V DCPV-1
- Type of product:Switch disconnectors
- Number of poles:2
- Operating voltage type:DC
- IEC Conventional free air thermal current Ith:100
- Type of installation:Screw on plate or 35mm DIN rail
| Order code | GLD0100T2C3 |
|---|---|
| Weight [g] | 1305 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 160X168X105 |
| Volume [cm³] | 2822.4 |
| Bar code [EAN13] | 8013975320594 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Rated operating voltage (EF001435) | 0 V |
| Number of switches (EF005586) | 1 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of poles (EF001391) | 2 |
| Rated permanent current Iu (EF001389) | 100 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Version as reversing switch (EF009408) | No |
| Voltage release optional (EF007491) | No |
| Motor drive optional (EF007386) | No |
| Suitable for intermediate mounting (EF007264) | Yes |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for front mounting 4-hole (EF007247) | No |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as main switch (EF006981) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Motor drive integrated (EF006697) | No |
| Interlockable (EF006281) | Yes |
| Device construction (EF008240) | Complete device in housing |
| Colour control element (EF007167) | Grey |
| Type of control element (EF006976) | Rotating button |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
