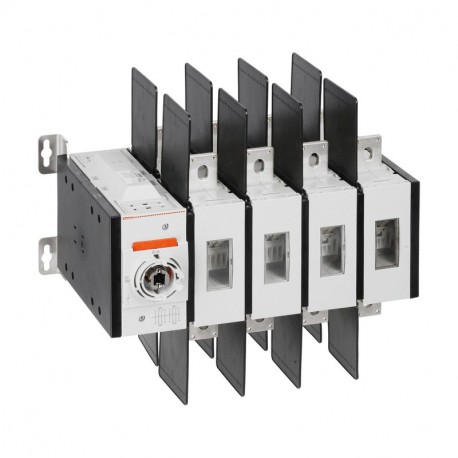

LOVATO ELECTRIC GLC1000T4C1 GLC1000T4C1 LOVATO 4P 1000A AC31A C1 SWITCH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GLC1000T4C1 LOVATO 4P 1000A AC31A C1 SWITCH

GLC1000T4C1

GLC1000T4C1

LOVATO ELECTRIC

1 Pcs.

4P 1000A AC31A C1 SWITCH Four-pole changeover switch, IEC/EN, 1000A

Connectors > Switch disconnector
Switch disconnectors - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric GLC1000T4C1 is a 4-pole switch designed to handle high-current electrical distributions in heavy industrial environments. Switching devices of this configuration are commonly integrated into switchboards and main distribution hubs to control electrical loads safely under load conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operating voltage (EF001435): 0 V
  • Rated permanent current at AC-23, 400 V (EF011777): 1000 A
  • Rated permanent current at AC-21, 400 V (EF009165): 1000 A
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated short-time withstand current lcw (EF007050): 20 kA
  • Rated operation power at AC-23, 400 V (EF007027): 560 kW
  • Number of switches (EF005586): 2
  • Conditioned rated short-circuit current Iq (EF001444): 20 kA
  • Number of poles (EF001391): 4
  • Rated permanent current Iu (EF001389): 1000 A
  • Version as reversing switch (EF009408): No
  • Voltage release optional (EF007491): No
  • Motor drive optional (EF007386): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for front mounting centre (EF007248): No

More info

▲

GLC1000T4C1

Four-pole changeover switch, IEC/EN, 1000A

Technical specifications

Type of product:
Changeover switches
Number of poles:
4
Type of operating voltage:
AC
IEC Conventional free air thermal current Ith [A]:
1000
Type of installation:
Screw on plate
Order codeGLC1000T4C1
Weight [g]24800
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]483X283X382
Volume [cm³]52810
Bar code [EAN13]8013975318980
HS Code85365080

2995.03 £


Product Datasheet
