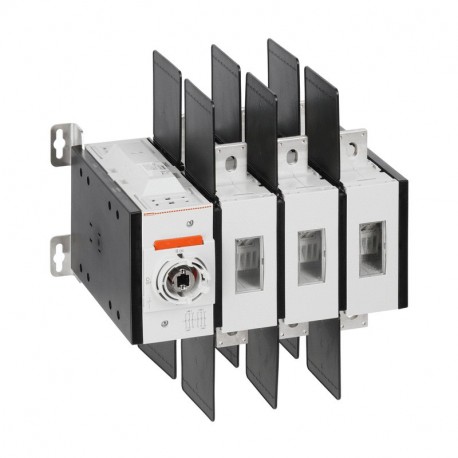

LOVATO ELECTRIC GLC1000C1 GLC1000C1 LOVATO 3P 1000A AC31A C1 SWITCH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GLC1000C1 LOVATO 3P 1000A AC31A C1 SWITCH

GLC1000C1

GLC1000C1

LOVATO ELECTRIC

1 Pcs.

3P 1000A AC31A C1 SWITCH Three-pole changeover switch, IEC/EN, 1000A

Connectors > Switch disconnector
Switch disconnectors - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered by Lovato Electric, the GLC1000C1 switch is a high-capacity industrial switching device deployed to manage robust electrical loads across heavy commercial and manufacturing installations. Such devices act as primary disconnects within complex power distribution networks, ensuring operational safety and effective circuit isolation under demanding electrical parameters.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operating voltage (EF001435): 0 V
  • Rated permanent current at AC-23, 400 V (EF011777): 1000 A
  • Rated permanent current at AC-21, 400 V (EF009165): 1000 A
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated short-time withstand current lcw (EF007050): 20 kA
  • Rated operation power at AC-23, 400 V (EF007027): 560 kW
  • Number of switches (EF005586): 2
  • Conditioned rated short-circuit current Iq (EF001444): 20 kA
  • Number of poles (EF001391): 3
  • Rated permanent current Iu (EF001389): 1000 A
  • Version as reversing switch (EF009408): No
  • Voltage release optional (EF007491): No
  • Motor drive optional (EF007386): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for front mounting centre (EF007248): No

More info

▲

GLC1000C1

Three-pole changeover switch, IEC/EN, 1000A

Technical specifications

Type of product:
Changeover switches
Number of poles:
3
Type of operating voltage:
AC
IEC Conventional free air thermal current Ith [A]:
1000
Type of installation:
Screw on plate
Order codeGLC1000C1
Weight [g]19100
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]483X283X382
Volume [cm³]52810
Bar code [EAN13]8013975318959
HS Code85365080

2516.93 £
