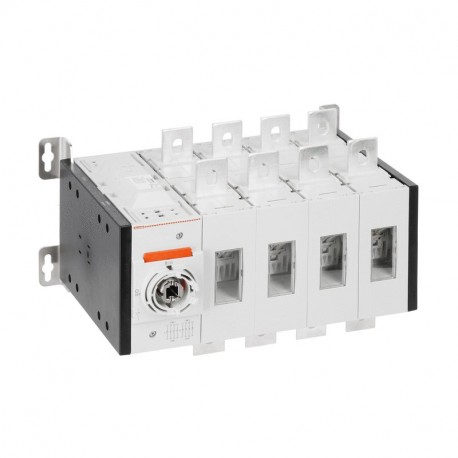

GLC0800T4C1 LOVATO 4P 800A AC31A C1 SWITCH
GLC0800T4C1
GLC0800T4C1
LOVATO ELECTRIC
1 Pcs.
4P 800A AC31A C1 SWITCH
Four-pole changeover switch, IEC/EN, 800A
Connectors > Switch disconnector
Switch disconnectors - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲GLC0800T4C1
Four-pole changeover switch, IEC/EN, 800A
Technical specifications
- Type of product:
- Changeover switches
- Number of poles:
- 4
- Type of operating voltage:
- AC
- IEC Conventional free air thermal current Ith [A]:
- 800
- Type of installation:
- Screw on plate
| Order code | GLC0800T4C1 |
|---|---|
| Weight [g] | 24800 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 483X283X382 |
| Volume [cm³] | 52810 |
| Bar code [EAN13] | 8013975318973 |
| HS Code | 85365080 |
2059.14 £
| Feature Name | Feature Value |
|---|---|
| Rated operating voltage (EF001435) | 0 V |
| Rated permanent current at AC-23, 400 V (EF011777) | 800 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 800 A |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated short-time withstand current lcw (EF007050) | 20 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 400 kW |
| Number of switches (EF005586) | 2 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Conditioned rated short-circuit current Iq (EF001444) | 50 kA |
| Number of poles (EF001391) | 4 |
| Rated permanent current Iu (EF001389) | 800 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Version as reversing switch (EF009408) | No |
| Voltage release optional (EF007491) | No |
| Motor drive optional (EF007386) | No |
| Suitable for intermediate mounting (EF007264) | Yes |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for front mounting 4-hole (EF007247) | No |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as main switch (EF006981) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Motor drive integrated (EF006697) | No |
| Interlockable (EF006281) | Yes |
| Device construction (EF008240) | Complete device in housing |
| Colour control element (EF007167) | Grey |
| Type of control element (EF006976) | Rotating button |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
