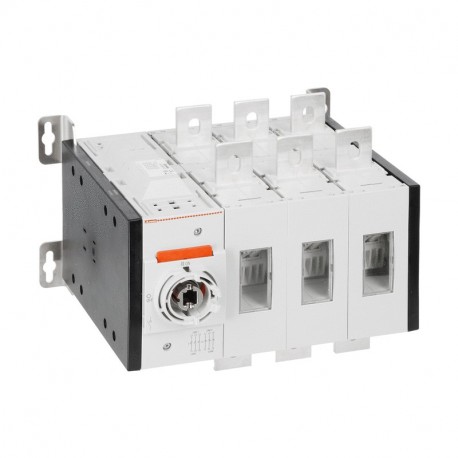

GLC0800C1 LOVATO 3P 800A AC31A C1 SWITCH
GLC0800C1
GLC0800C1
LOVATO ELECTRIC
1 Pcs.
Connectors > Switch disconnector
Switch disconnectors - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Lovato Electric GLC0800C1 is a robust 3P switch designed for heavy-duty power distribution networks and large industrial loads. Such switches are typically employed to safely break high current streams and provide reliable load isolation in electrical distribution systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated operating voltage (EF001435): 0 V
- Rated permanent current at AC-23, 400 V (EF011777): 800 A
- Rated permanent current at AC-21, 400 V (EF009165): 800 A
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated short-time withstand current lcw (EF007050): 20 kA
- Rated operation power at AC-23, 400 V (EF007027): 400 kW
- Number of switches (EF005586): 2
- Conditioned rated short-circuit current Iq (EF001444): 50 kA
- Number of poles (EF001391): 3
- Rated permanent current Iu (EF001389): 800 A
- Version as reversing switch (EF009408): No
- Voltage release optional (EF007491): No
- Motor drive optional (EF007386): No
- Suitable for intermediate mounting (EF007264): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for front mounting centre (EF007248): No
More info
▲GLC0800C1
Three-pole changeover switch, IEC/EN, 800A
Technical specifications
- Type of product:
- Changeover switches
- Number of poles:
- 3
- Type of operating voltage:
- AC
- IEC Conventional free air thermal current Ith [A]:
- 800
- Type of installation:
- Screw on plate
| Order code | GLC0800C1 |
|---|---|
| Weight [g] | 19100 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 483X283X382 |
| Volume [cm³] | 52810 |
| Bar code [EAN13] | 8013975318942 |
| HS Code | 85365080 |
