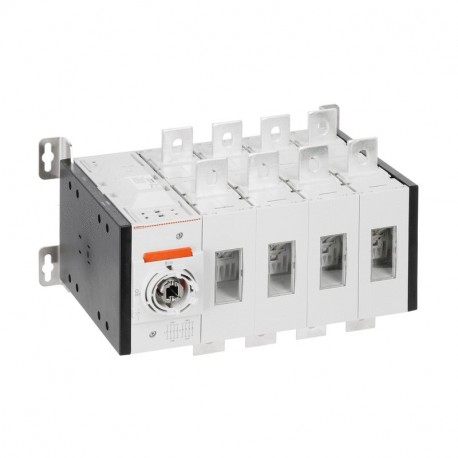

GLC0631T4C1 LOVATO 4P 630A AC31A C1 SWITCH
GLC0631T4C1
GLC0631T4C1
LOVATO ELECTRIC
1 Pcs.
Connectors > Switch disconnector
Switch disconnectors - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A high-current industrial switch such as the Lovato Electric GLC0631T4C1 LOVATO 4P 630A AC31A C1 SWITCH is deployed in heavy power distribution systems to safely route, switch, or isolate robust electrical loads under demanding operating parameters. It delivers reliable circuit control and helps maintain operational safety across large-scale commercial plants.
Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Rated operating voltage (EF001435): 0 V
- Rated permanent current at AC-23, 400 V (EF011777): 630 A
- Rated permanent current at AC-21, 400 V (EF009165): 630 A
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated short-time withstand current lcw (EF007050): 20 kA
- Rated operation power at AC-23, 400 V (EF007027): 355 kW
- Number of switches (EF005586): 2
- Conditioned rated short-circuit current Iq (EF001444): 80 kA
- Number of poles (EF001391): 4
- Rated permanent current Iu (EF001389): 630 A
- Version as reversing switch (EF009408): No
- Voltage release optional (EF007491): No
- Motor drive optional (EF007386): No
- Suitable for intermediate mounting (EF007264): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for front mounting centre (EF007248): No
More info
▲GLC0631T4C1
Four-pole changeover switch, IEC/EN, 630A
Technical specifications
- Type of product:
- Changeover switches
- Number of poles:
- 4
- Type of operating voltage:
- AC
- IEC Conventional free air thermal current Ith [A]:
- 630
- Type of installation:
- Screw on plate
| Order code | GLC0631T4C1 |
|---|---|
| Weight [g] | 24800 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 483X283X382 |
| Volume [cm³] | 52810 |
| Bar code [EAN13] | 8013975318966 |
| HS Code | 85365080 |
