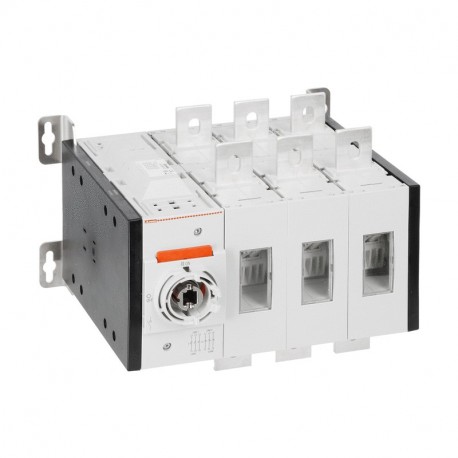

GLC0631C1 LOVATO 3P 630A AC31A C1 SWITCH
GLC0631C1
GLC0631C1
LOVATO ELECTRIC
1 Pcs.
Connectors > Switch disconnector
Switch disconnectors - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Lovato Electric GLC0631C1 is a 3-pole 630A switch engineered for robust load switching and power distribution control in heavy industrial systems. High-capacity switches of this type safely interrupt significant electrical currents within large switchboards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated operating voltage (EF001435): 0 V
- Rated permanent current at AC-23, 400 V (EF011777): 630 A
- Rated permanent current at AC-21, 400 V (EF009165): 630 A
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated short-time withstand current lcw (EF007050): 20 kA
- Rated operation power at AC-23, 400 V (EF007027): 355 kW
- Number of switches (EF005586): 2
- Conditioned rated short-circuit current Iq (EF001444): 80 kA
- Number of poles (EF001391): 3
- Rated permanent current Iu (EF001389): 630 A
- Version as reversing switch (EF009408): No
- Voltage release optional (EF007491): No
- Motor drive optional (EF007386): No
- Suitable for intermediate mounting (EF007264): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for front mounting centre (EF007248): No
More info
▲GLC0631C1
Three-pole changeover switch, IEC/EN, 630A
Technical specifications
- Type of product:
- Changeover switches
- Number of poles:
- 3
- Type of operating voltage:
- AC
- IEC Conventional free air thermal current Ith [A]:
- 630
- Type of installation:
- Screw on plate
| Order code | GLC0631C1 |
|---|---|
| Weight [g] | 19100 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 483X283X382 |
| Volume [cm³] | 52810 |
| Bar code [EAN13] | 8013975318935 |
| HS Code | 85365080 |
