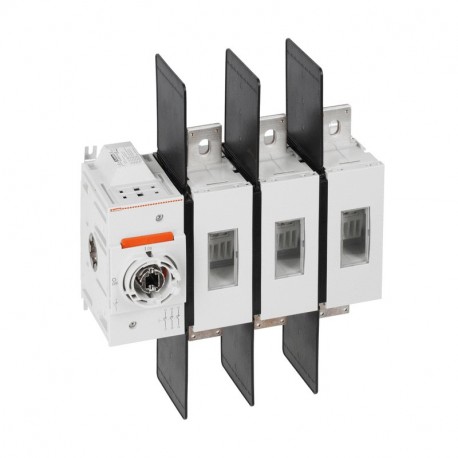

LOVATO ELECTRIC GL0800C1UL GL0800C1UL LOVATO 3P SWITCH DISCONNECTOR 800A UL C1 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GL0800C1UL LOVATO 3P SWITCH DISCONNECTOR 800A UL C1

GL0800C1UL

GL0800C1UL

LOVATO ELECTRIC

1 Pcs.

3P SWITCH DISCONNECTOR 800A UL C1 Three-pole switch disconnector, UL98, 800A INT. SEZIONATORE 3P 800A UL C1

Connectors > Switch disconnector
Switch disconnectors - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric GL0800C1UL is a switch disconnector designed to manually open and close electrical circuits under load conditions, commonly utilized in heavy-duty distribution boards and motor control systems. Devices of this type provide reliable electrical isolation and safety compliance for industrial electrical architectures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electrical connection of main circuit (EF006819): Bolt connection
  • Type of control element (EF006976): Rotating button
  • Colour control element (EF007167): Grey
  • Device construction (EF008240): Complete device in housing
  • Rated operating voltage (EF001435): 0 V
  • Version as reversing switch (EF009408): No
  • Voltage release optional (EF007491): No
  • Motor drive optional (EF007386): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for front mounting centre (EF007248): No
  • Suitable for front mounting 4-hole (EF007247): No
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as main switch (EF006981): Yes
  • Version as emergency stop installation (EF006959): No

More info

▲

GL0800C1UL

Three-pole switch disconnector, UL98, 800A

Technical specifications

Type of product:
Switch disconnectors
Number of poles:
3
Type of operating voltage:
AC
IEC Conventional free air thermal current Ith [A]:
800
UL Standard:
UL98
Type of installation:
Screw on plate
Order codeGL0800C1UL
Weight [g]7950
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]390X263X178
Volume [cm³]18257
Bar code [EAN13]8013975312100
HS Code85365080

1233.74 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
