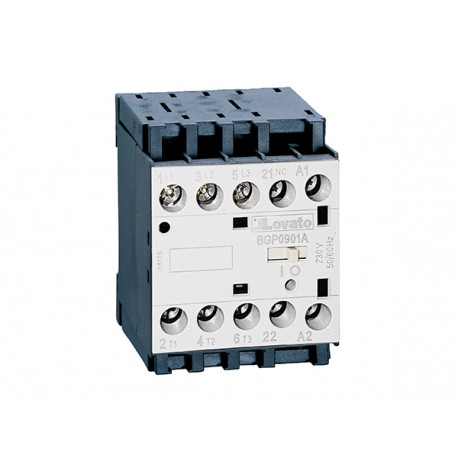

LOVATO ELECTRIC 11BGP09T4D060 11BGP09T4D060 BGP09T4D060 LOVATO FOUR-POLE CONTACTOR, DC COIL, 60VDC, REAR PCB SOLDER PIN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11BGP09T4D060 BGP09T4D060 LOVATO FOUR-POLE CONTACTOR, DC COIL, 60VDC, REAR PCB SOLDER PIN

11BGP09T4D060

BGP09T4D060

LOVATO ELECTRIC

1 Pcs.

FOUR-POLE CONTACTOR, DC COIL, 60VDC, REAR PCB SOLDER PIN Minicontactor Tetrapolar 20A AC1 Coil 60V DC Printed Circuit Four-pole contactor, DC coil, 60VDC, rear PCB solder pin

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric four-pole contactor (11BGP09T4D060) is implemented in specialized electronic control systems and specialized switchgear requiring direct board integration for switching multi-phase circuits. These units handle power management in compact printed circuit assemblies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating: DC
  • Type of electrical connection of main circuit: PCB connection
  • Rated control supply voltage DC: 60 V
  • Modular version: No
  • Rated operation current Ie at AC-4, 400 V: 4 A
  • Rated operation current Ie at AC-1, 400 V: 20 A
  • Rated operation current Ie at AC-3, 400 V: 9 A
  • Number of normally open contacts as main contact: 4
  • Rated operation power at AC-3, 400 V: 4 kW

More info

▲

11BGP09T4D060

Four-pole contactor, DC coil, 60VDC, rear PCB solder pin

Technical specifications

Type of product:
Contactors
Number of poles:
4
Type of coil:
DC coil
Rated coil voltage [V]:
60
IEC operating current Ith (AC1) [A]:
20
IEC operating current and power Ie (AC3) 400V [A/Kw]:
9A / 4.0Kw
UL/CSA horsepower ratings 480V [HP]:
5
Type of mounting:
Screw / DIN rail 35mm
Order code11BGP09T4D060
Weight [g]242
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]060X045X070
Volume [cm³]189
Bar code [EAN13]8013975145388
HS Code85365080

67.15 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
