View larger
Images are for illustrative purposes only. Please refer to data sheet for details

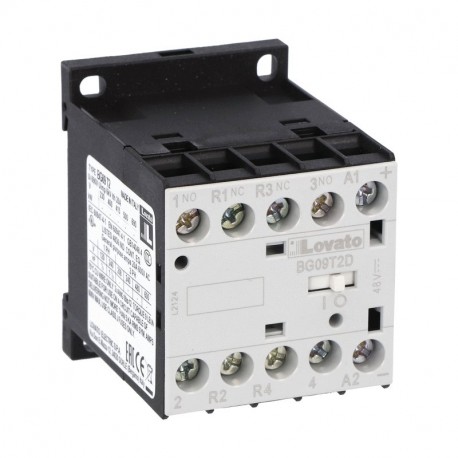

11BG09T2D048 BG09T2D048 LOVATO FOUR-POLE CONTACTOR, DC COIL, 48VDC, 2NO AND 2NC
11BG09T2D048
BG09T2D048
LOVATO ELECTRIC
1 Pcs.
FOUR-POLE CONTACTOR, DC COIL, 48VDC, 2NO AND 2NC
Minicont. 2NA+2NC 20A AC1 48V DC
Four-pole contactor, DC coil, 48VDC, 2NO and 2NC
Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲11BG09T2D048
Four-pole contactor, DC coil, 48VDC, 2NO and 2NC
Technical specifications
- Type of product:
- Contactors
- Number of poles:
- 4
- Type of coil:
- DC coil
- Rated coil voltage [V]:
- 48
- IEC operating current Ith (AC1) [A]:
- 20
- IEC operating current and power Ie (AC3) 400V [A/Kw]:
- 9A / 4.0Kw
- UL/CSA horsepower ratings 480V [HP]:
- 5
- Type of mounting:
- Screw / DIN rail 35mm
| Order code | 11BG09T2D048 |
|---|---|
| Weight [g] | 220 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 060X045X060 |
| Volume [cm³] | 162 |
| Bar code [EAN13] | 8013975081013 |
| HS Code | 85365080 |
64.49 £
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | DC |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Rated control supply voltage DC (EF003980) | 48 V |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 20 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 9 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of normally closed contacts as main contact (EF001375) | 2 |
| Number of normally open contacts as main contact (EF001374) | 2 |
