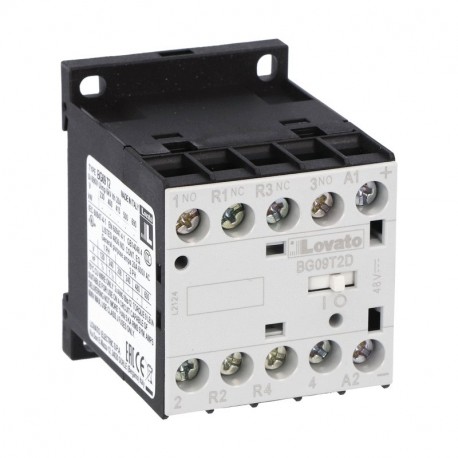

11BG09T2D024 BG09T2D024 LOVATO FOUR-POLE CONTACTOR, DC COIL, 24VDC, 2NO AND 2NC
11BG09T2D024
BG09T2D024
LOVATO ELECTRIC
1 Pcs.
Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lovato Electric 11BG09T2D024 four-pole contactor provides essential switching functionality for complex multi-phase electrical circuits within automated manufacturing equipment. Units of this class allow seamless remote actuation of industrial machinery and distribution systems.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Voltage type for actuating (EF008242): DC
- Type of electrical connection of main circuit (EF006819): Screw connection
- Rated control supply voltage DC (EF003980): 24 V
- Modular version (EF001126): No
- Rated operation current Ie at AC-1, 400 V (EF001393): 20 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 9 A
- Number of normally open contacts as main contact (EF001374): 2
More info
▲11BG09T2D024
Four-pole contactor, DC coil, 24VDC, 2NO and 2NC
Technical specifications
- Type of product:
- Contactors
- Number of poles:
- 4
- Type of coil:
- DC coil
- Rated coil voltage [V]:
- 24
- IEC operating current Ith (AC1) [A]:
- 20
- IEC operating current and power Ie (AC3) 400V [A/Kw]:
- 9A / 4.0Kw
- UL/CSA horsepower ratings 480V [HP]:
- 5
- Type of mounting:
- Screw / DIN rail 35mm
| Order code | 11BG09T2D024 |
|---|---|
| Weight [g] | 224 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 060X045X060 |
| Volume [cm³] | 162 |
| Bar code [EAN13] | 8013975080702 |
| HS Code | 85365080 |
