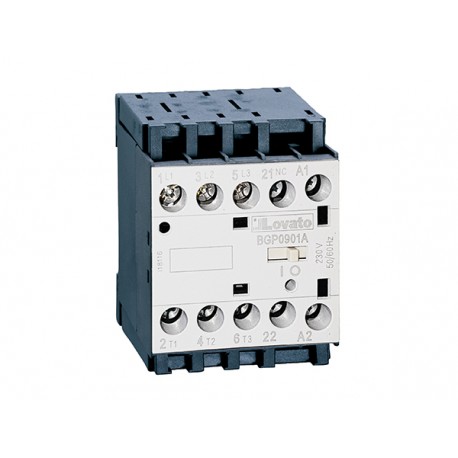

11BGP09T4D012 BGP09T4D012 LOVATO FOUR-POLE CONTACTOR, DC COIL, 12VDC, REAR PCB SOLDER PIN
11BGP09T4D012
BGP09T4D012
LOVATO ELECTRIC
1 Pcs.
Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lovato Electric 11BGP09T4D012 contactor provides specialized direct current switching capabilities for compact electronic assemblies and circuit boards. These miniature devices are essential for low-voltage automation control and internal equipment routing.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Voltage type for actuating (EF008242): DC
- Type of electrical connection of main circuit (EF006819): PCB connection
- Rated control supply voltage DC (EF003980): 12 V
- Modular version (EF001126): No
- Rated operation current Ie at AC-4, 400 V (EF008495): 4 A
- Rated operation current Ie at AC-1, 400 V (EF001393): 20 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 9 A
- Number of normally open contacts as main contact (EF001374): 4
- Rated operation power at AC-3, 400 V (EF001364): 4 kW
More info
▲11BGP09T4D012
Four-pole contactor, DC coil, 12VDC, rear PCB solder pin
Technical specifications
- Type of product:
- Contactors
- Number of poles:
- 4
- Type of coil:
- DC coil
- Rated coil voltage [V]:
- 12
- IEC operating current Ith (AC1) [A]:
- 20
- IEC operating current and power Ie (AC3) 400V [A/Kw]:
- 9A / 4.0Kw
- UL/CSA horsepower ratings 480V [HP]:
- 5
- Type of mounting:
- Screw / DIN rail 35mm
| Order code | 11BGP09T4D012 |
|---|---|
| Weight [g] | 242 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 060X045X070 |
| Volume [cm³] | 189 |
| Bar code [EAN13] | 8013975145357 |
| HS Code | 85365080 |
