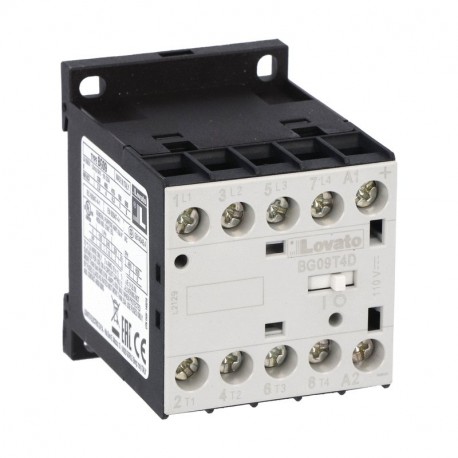

LOVATO ELECTRIC 11BG09T4D012 11BG09T4D012 BG09T4D012 LOVATO FOUR-POLE CONTACTOR, DC COIL, 12VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11BG09T4D012 BG09T4D012 LOVATO FOUR-POLE CONTACTOR, DC COIL, 12VDC

11BG09T4D012

BG09T4D012

LOVATO ELECTRIC

1 Pcs.

FOUR-POLE CONTACTOR, DC COIL, 12VDC Minicont. 4P 20A AC1 12V DC Four-pole contactor, DC coil, 12VDC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A four-pole contactor is a specialized electromechanical switch used to handle multi-pole switching tasks in industrial control circuits, power supplies, and automation panels. The Lovato Electric 11BG09T4D012 ensures reliable circuit operation driven by direct current control signals.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Rated control supply voltage DC (EF003980): 12 V
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-4, 400 V (EF008495): 4 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 9 A
  • Number of normally open contacts as main contact (EF001374): 4
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW

More info

▲

11BG09T4D012

Four-pole contactor, DC coil, 12VDC

Technical specifications

Type of product:
Contactors
Number of poles:
4
Type of coil:
DC coil
Rated coil voltage [V]:
12
IEC operating current Ith (AC1) [A]:
20
IEC operating current and power Ie (AC3) 400V [A/Kw]:
9A / 4.0Kw
UL/CSA horsepower ratings 480V [HP]:
5
Type of mounting:
Screw / DIN rail 35mm
Order code11BG09T4D012
Weight [g]219
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]060X045X060
Volume [cm³]162
Bar code [EAN13]8013975082751
HS Code85365080

63.25 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
