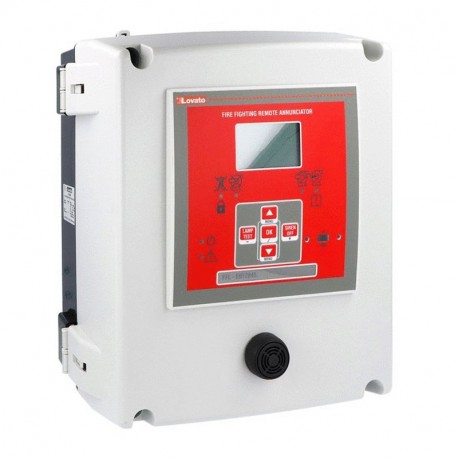

LOVATO ELECTRIC FFLRA400 FFLRA400 LOVATO Panel remote control alarm c/graphical LCD display (128x80pxls), buzzer, expandable with EXP.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FFLRA400 LOVATO Panel remote control alarm c/graphical LCD display (128x80pxls), buzzer, expandable with EXP..

FFLRA400

FFLRA400

LOVATO ELECTRIC

1 unit


Automation > Fire controllers
Fire controllers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

FFLRA400 LOVATO Panel remote control alarm c/graphical LCD display (128x80pxls), buzzer, expandable with EXP.. is an interface terminal deployed in industrial control panels to deliver visual alerts, acoustic warnings, and system status updates. Operators rely on graphical annunciators to quickly identify operational faults and monitor critical automation loops. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Integrated dial device: No
  • Interface external: Yes
  • Emergency power supply integrated: Yes
  • Radio connection: Yes
  • With power adaptor: Yes
  • Addressable: Yes
  • Suitable for bus connection: Yes
  • Number of outputs for acoustic signal generators: 1
  • Electricity consumption: 330 mA
  • Operating voltage: 230 V
  • Depth: 170 mm
  • Height: 280 mm
  • Width: 220 mm

More info

▲

FFLRA400

Remote alarm panel with LCD graphic display (128x80pixels), buzzer, expandable with EXP... expansion modules. It supports up to 3 fire pump controllers

Technical specifications

Type of product:
Remote alarm panel
Expandable:
Yes
Rated supply voltage:
100…240VAC
Display:
LCD
Order codeFFLRA400
Weight [g]266.5
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]295X240X225
Volume [cm³]15930
Bar code [EAN13]8013975232613
HS Code85365080

693.09 £
